(4
Connect a
180
pF mica capacitor from lug
2
of coil
CU
(NS) to ground lug
CL-2
(NS).

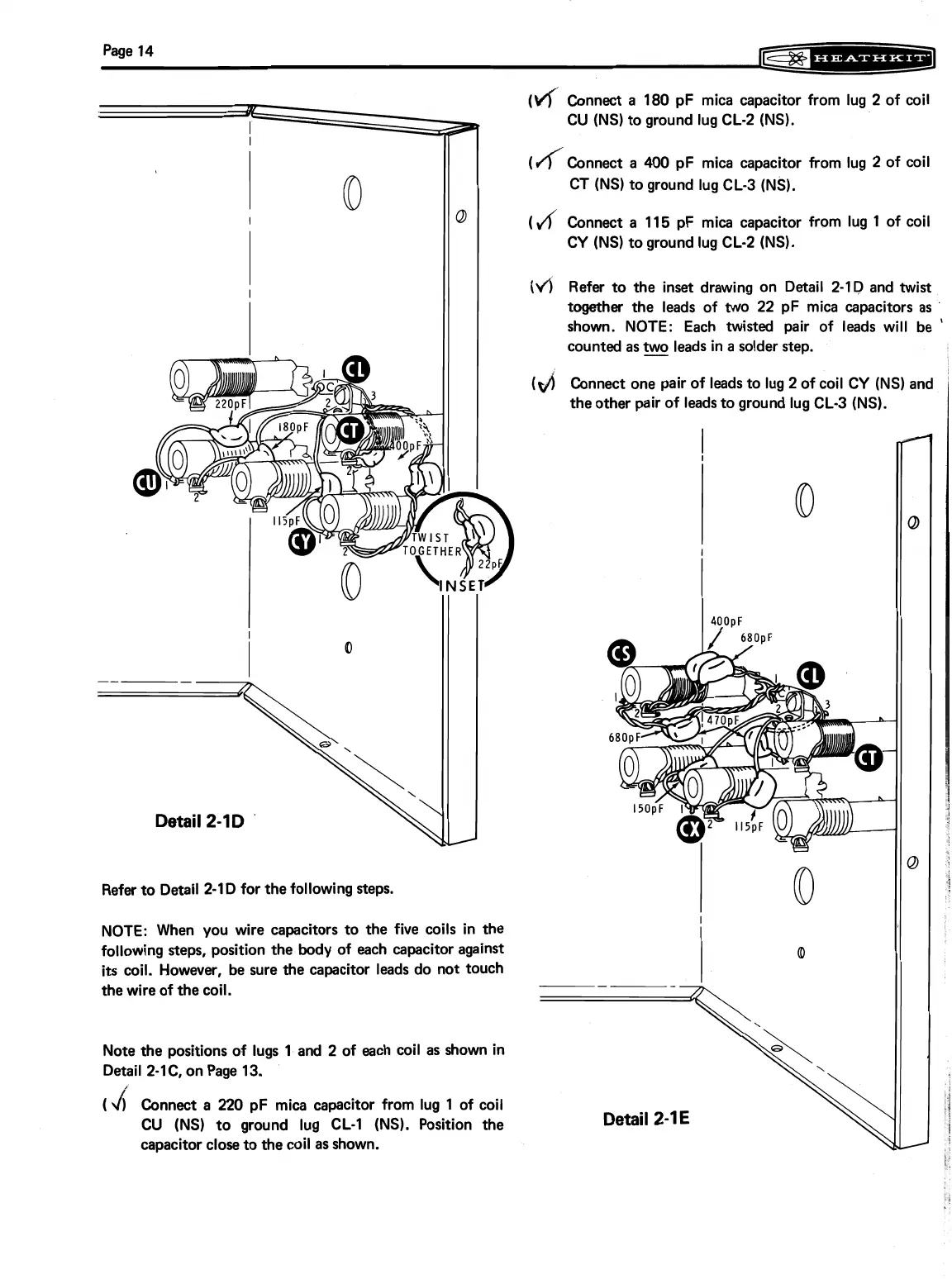

Detail
2-1D
'
Refer to Detail
2-1
D for the following steps.
NOTE: When you wire capacitors to the five coils in the
following steps, position the body of each capacitor against
its
coil. However, be sure the capacitor leads do not touch
the wire of the coil.
(/(Connect a
400
pF mica capacitor from lug
2
of coil
CT
(NS) to ground lug
CL-3
(NS).
(
d
Connect a
115
pF mica capacitor from lug
1
of coil
CY
(NS) to ground lug
CL-2
(NS).
(4
Refer to the inset drawing on Detail
2-ID
and twist
together the leads of
two
22
pF mica capacitors as
shown. NOTE: Each twisted pair of leads will be
'
counted as leads in a solder step.
I
('t/j
Connect one pair of leads to lug
2
of coil
CY
(NS) and
the other pair of leads to ground lug
CL-3
(NS).
Note the positions of lugs
1
and
2
of each coil as shown in
Detail
2-1C,
on Page
13.
(
d
Connect a
220
pF mica capacitor from lug
1
of coil
CU
(NS) to ground lug
CL-1
(NS). Position the
capacitor close to the coil as shown.
