Heatmiser Touch - Wiring Diagram - Touch wired to Boiler (Voltfree)

27 Touch Series

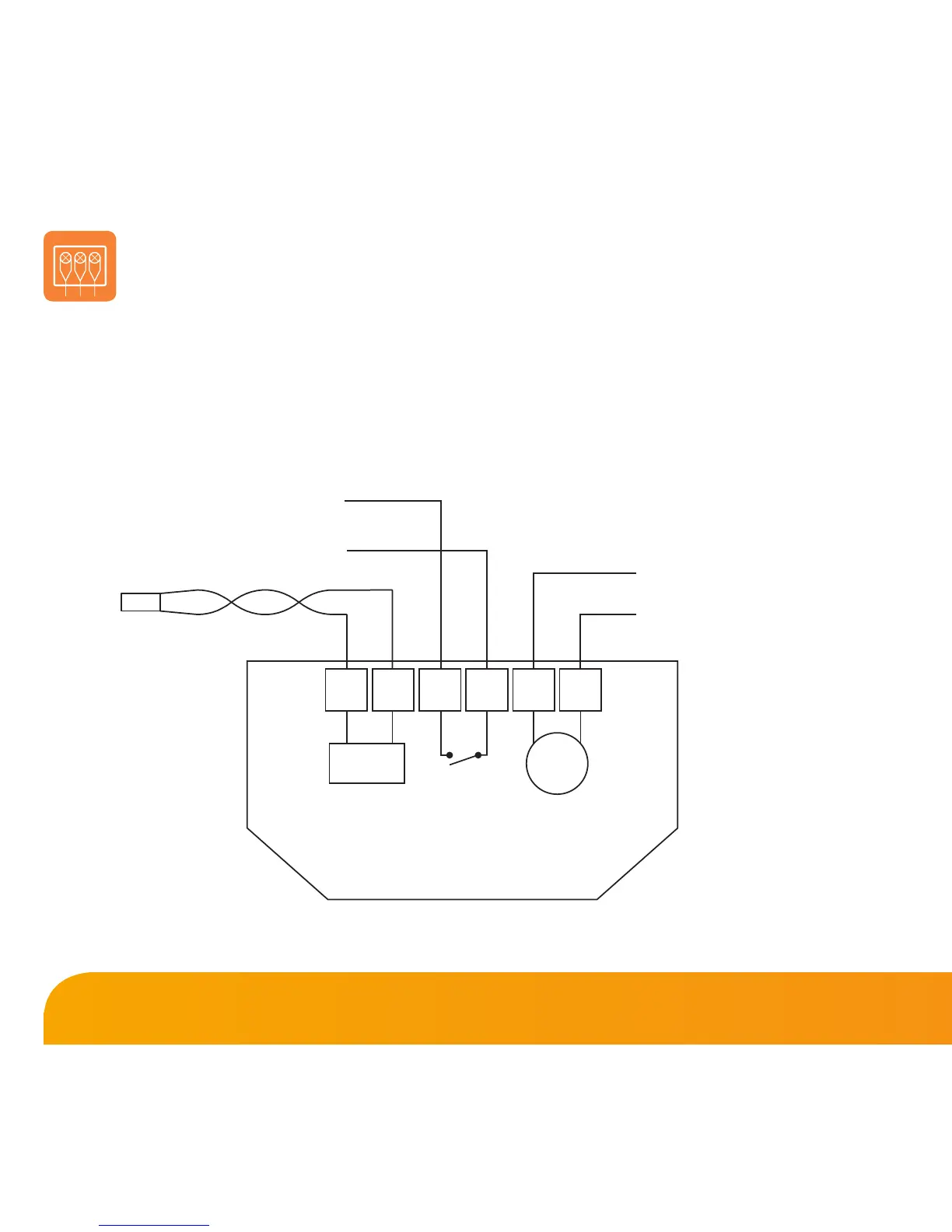

Wiring Diagram - Touch wired to Boiler (Voltfree)
RT
Remote
Air Sensor
REMOTE PROBE
VOLTFREE TO BOILER
LIVE
NEUTRAL
85-230VAC 50/60HZ
SUPPLY IN
TO CONNECT BOILER CONSULT
BOILER MANUFACTURERS DIAGRAM
LS
LR
-
Touch
230VAC
LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
A1 A2 N L
