Heatmiser Touch - Wiring Diagram - Touch wired to Spring Return Valve (230 v)

28

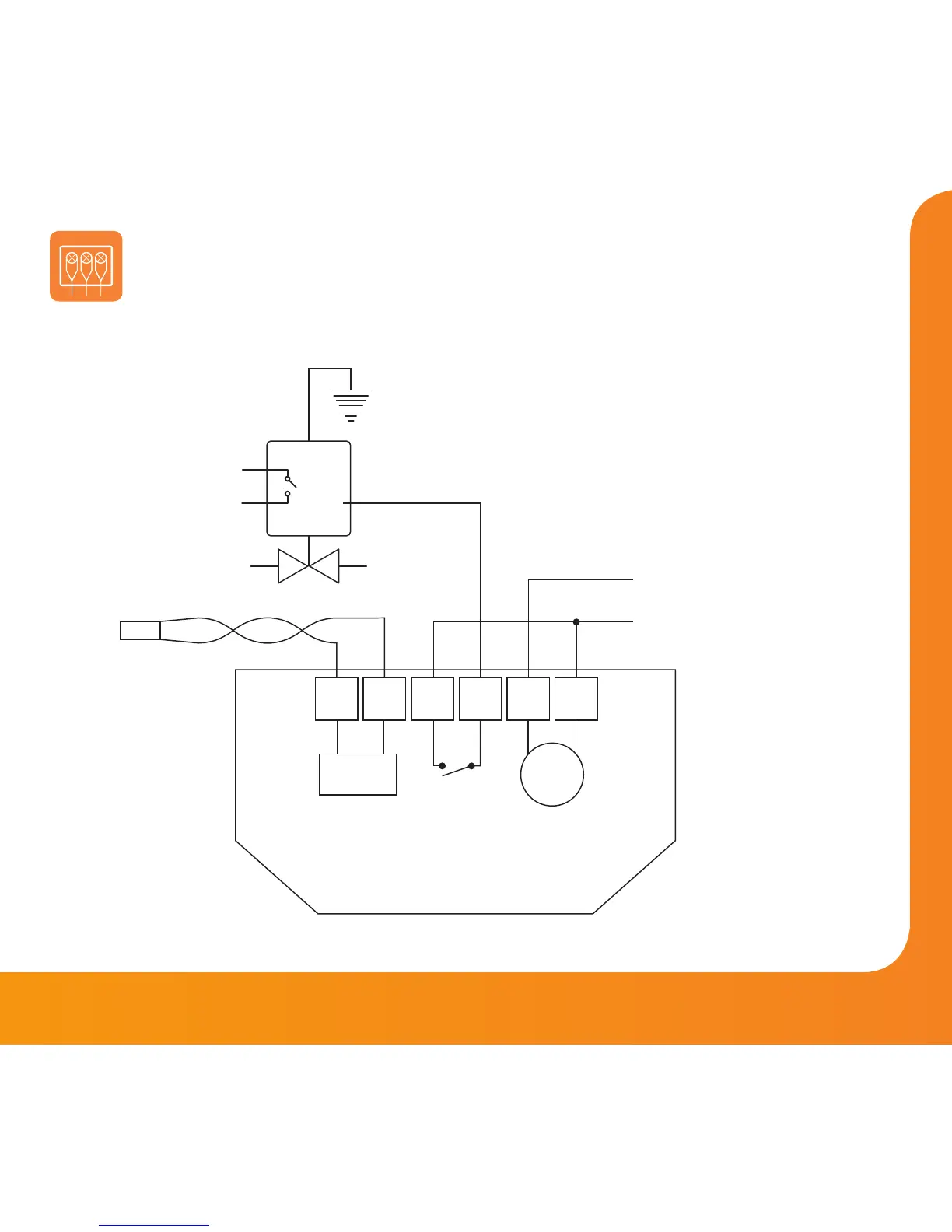

Wiring Diagram - Touch wired to Spring
Return Valve (230v)
TO CONNECT BOILER CONSULT
BOILER MANUFACTURERS DIAGRAM
N
L
LS
LR
RT A1 A2 N L
Remote
Air Sensor
REMOTE PROBE
LIVE
NEUTRAL
85-230VAC 50/60HZ
SUPPLY IN
TO BOILER
-
Touch
230VAC
LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS
NEUTRAL
HEATING VALVE
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
Model: Touch
