Heber MiSTer Multisystem - Page 13

10
80-23024 Issue 3r1 HEBER

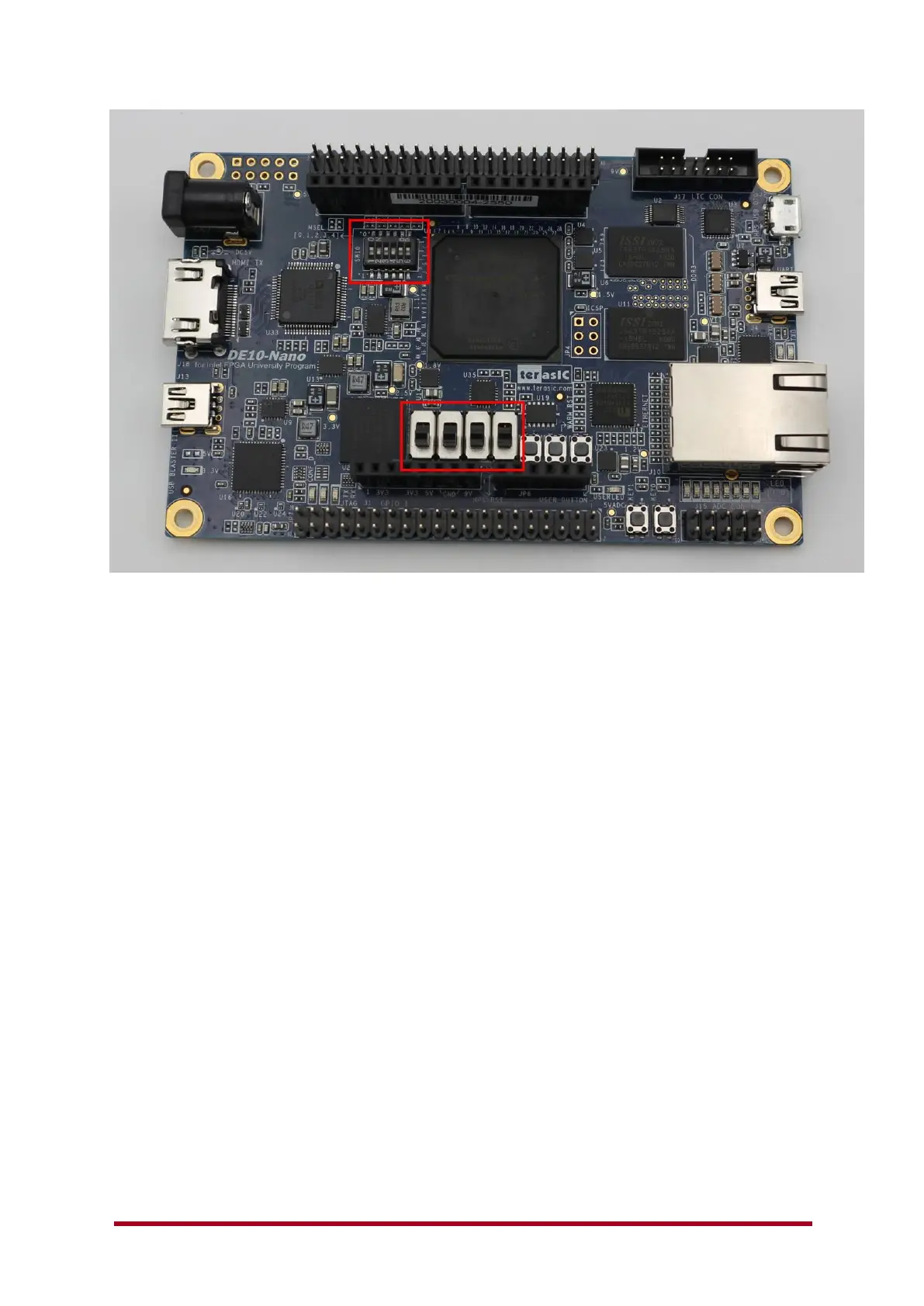

The DE10-nano switch positions should be as shown above (standard for MiSTer Analogue I/O).
Upper switches = 2 and 4 down (off) and all others are in the Up position (on).
All lower switches in the downwards position.
