80-23024 Issue 3r1 HEBER
7 FITTING INTO THE 3D PRINTED ENCLOSURE

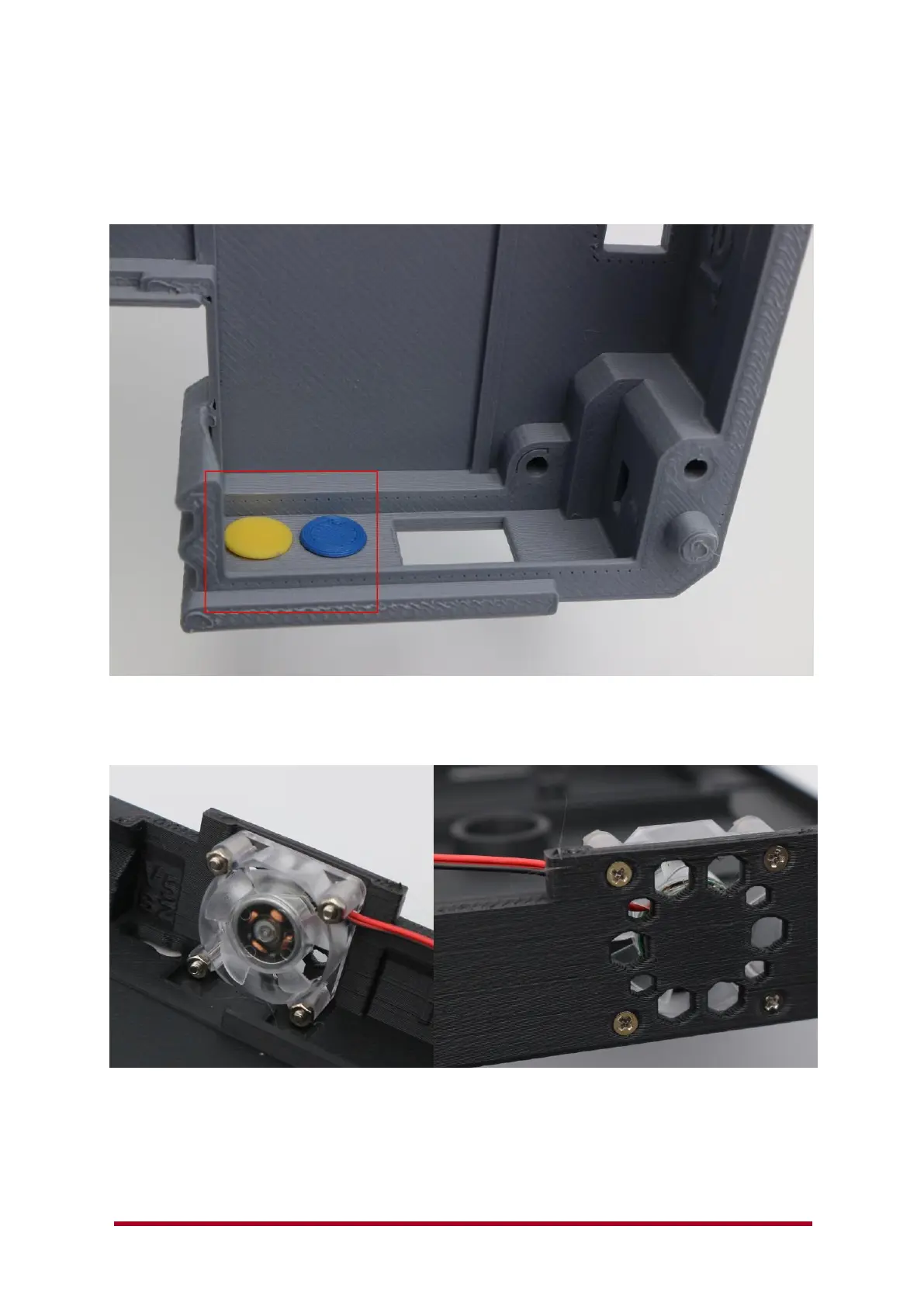

Fit the two buttons into the base of the enclosure, the buttons should hold in place if you tilt the
base on a slight angle. Ideally fit them as above, if you have any technical support issues, we may
ask you to press the blue, yellow or red buttons.
If your 30mm case fan is not already fitted, then fix to the base of the case as shown above – note
that fan colour and fixings supplied may look slightly different from the images above.
