80-23024 Issue 3r1 HEBER

9 GENERAL WARNINGS FOR OPERATION

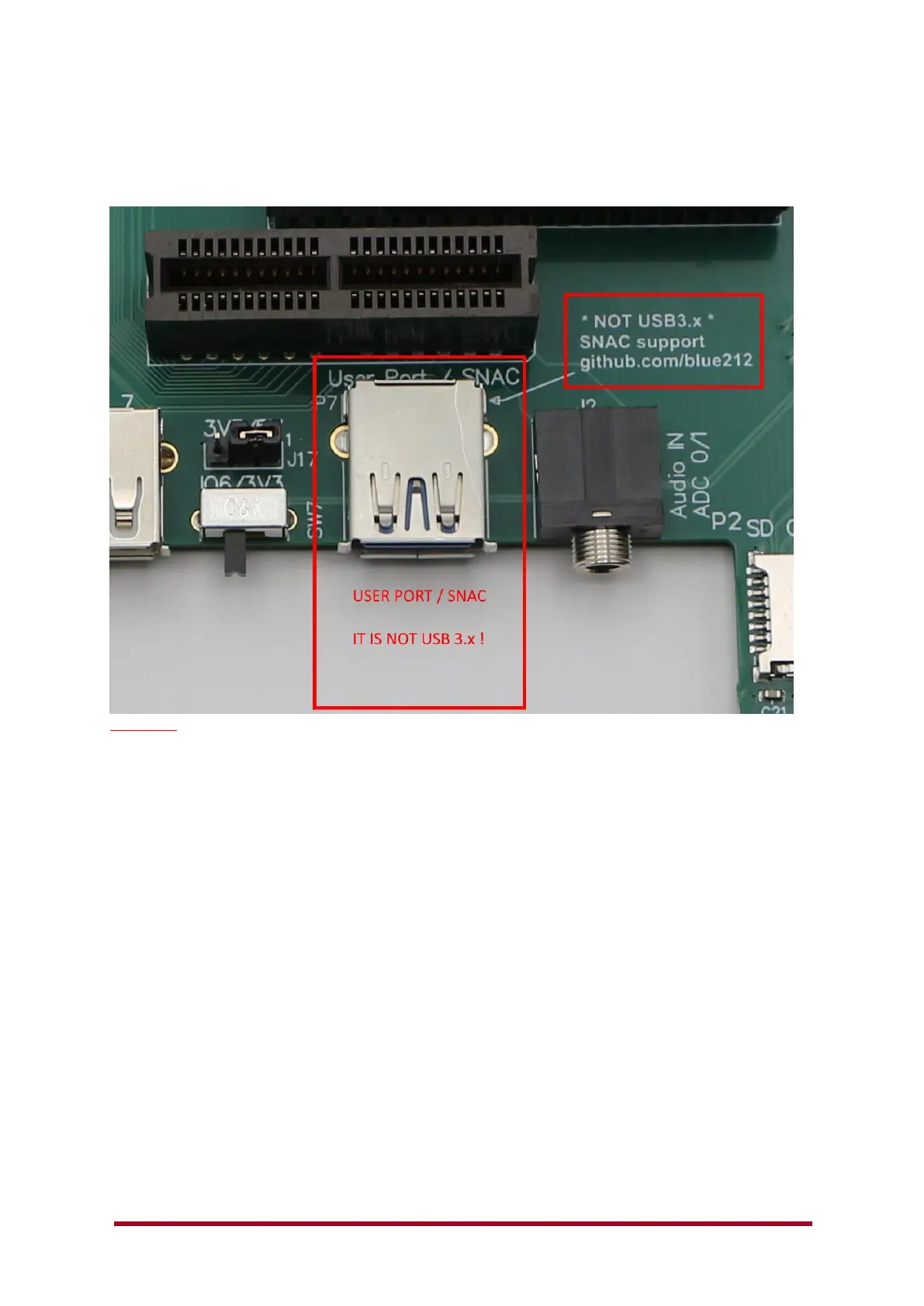

Warning – Do not connect USB devices to the User/SNAC port – this is not a USB connector and it has

direct connection to the DE10-nano board. You will damage your Multisystem and/or DE10-nano if

you connect a USB device to this port.

9.1 FAQ

9.1.1 Why does the SCART output not work with my ‘TV’ / Monitor / Arcade?

Usually for the following reasons –

1- The Mister.INI file has the incorrect settings – see section 7.2 above

2- Some FPGA cores are set to run at higher resolutions that will never output an RGB SCART

signal that a CRT TV or Arcade monitor will accept. (For example, the MiSTer Memory test

core will display fine on a modern VGA and HDMI, but not for a 15Khz CRT screen /

monitor).

3- The SCART output provides a high quality RGB signal to a European RGB SCART input of a

consumer TV (CRT/LCD) and other SCART Devices or SCART switchers that can switch the

RGB signals etc.
