80-23024 Issue 3r1 HEBER
2 MULTISYSTEM BOARD CHECKS
Before you do anything else, please make sure to remove the HDMI Bridge board from the
Multisystem board.
Now check the Multisystem board has its switches, jumpers and settings correctly configured to the
standard positions – please note you may need to change these later in the manual for the desired
use.

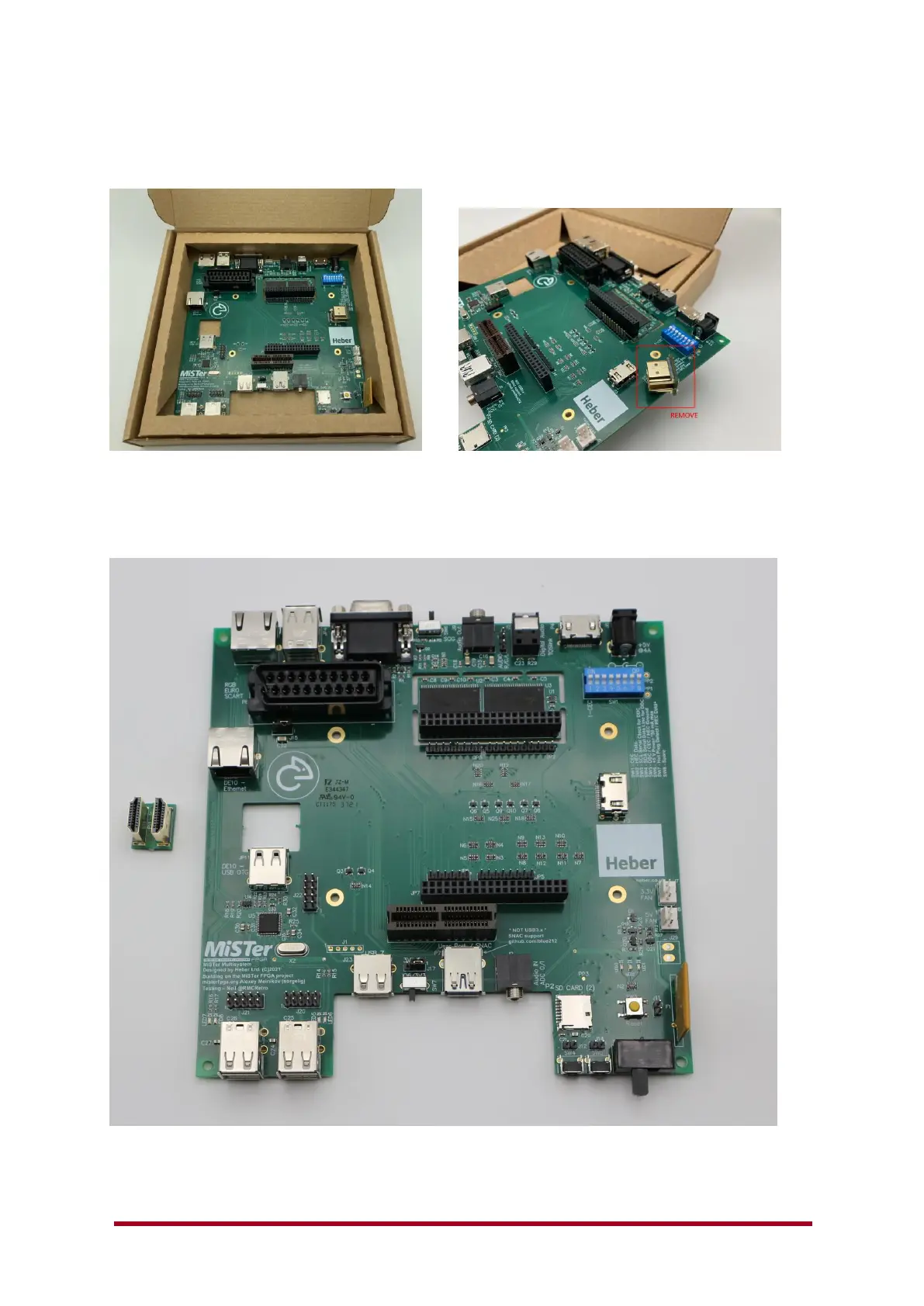

The image above should be how your Multisystem board is delivered, including an HDMI Bridge PCB.
