80-23024 Issue 3r1 HEBER
5.2 Connect the USB and Ethernet cables –

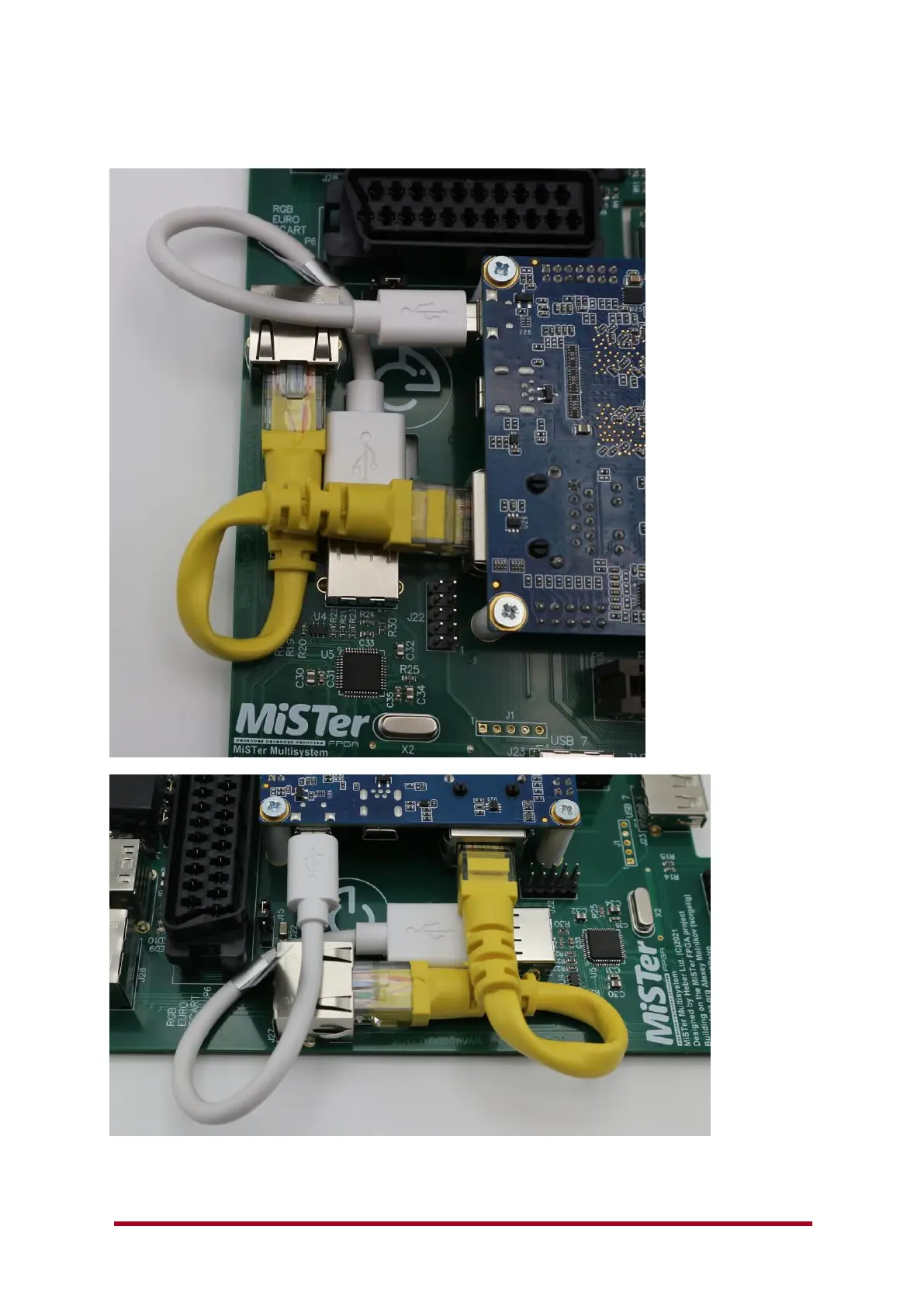

Carefully bend the cables into the positions shown above and connect to the DE10-nano board.
