13
80-23024 Issue 3r1 HEBER

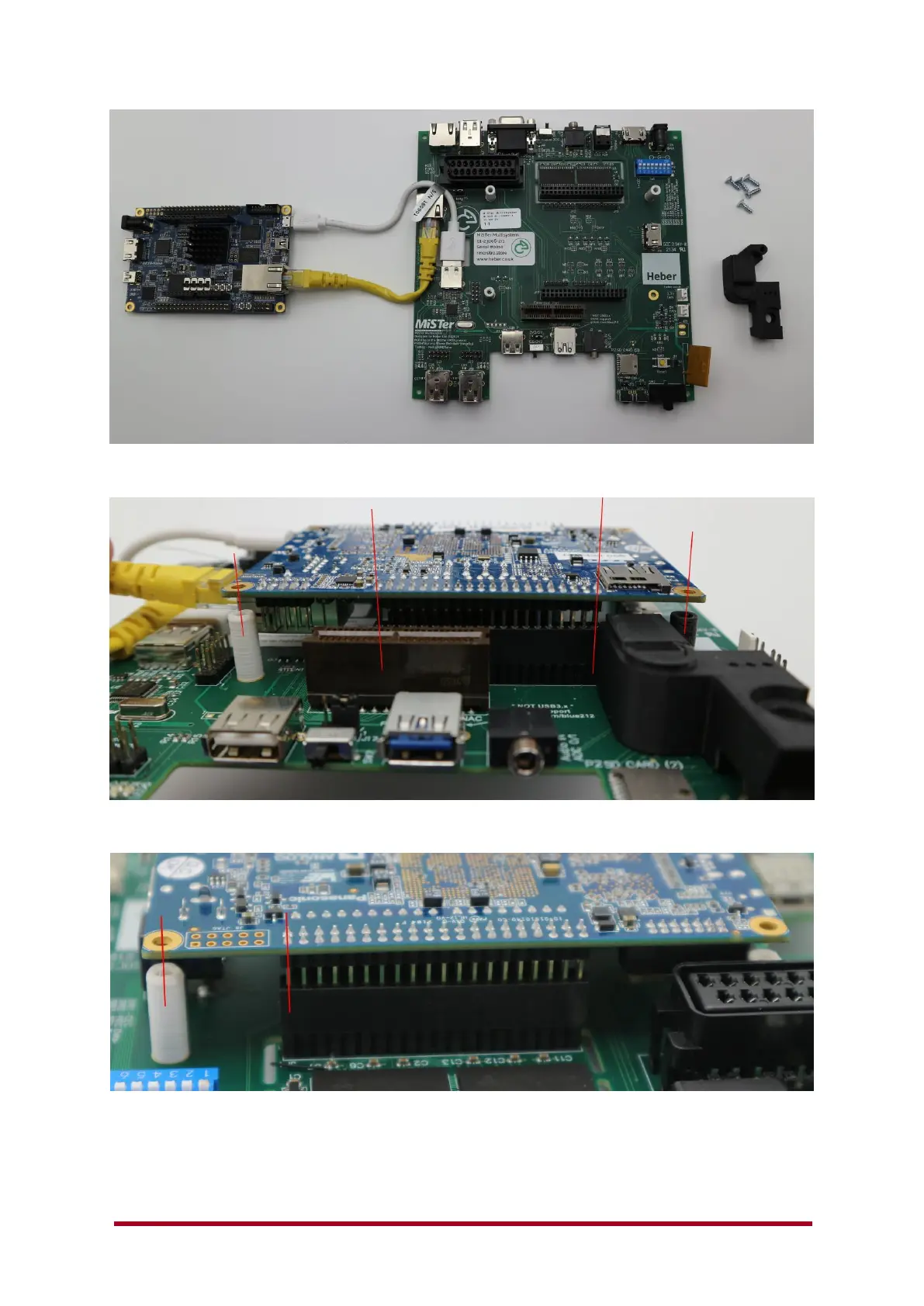

You can attach the micro USB and Ethernet cable to the DE10-nano as shown above.
Carefully align the DE10-nano to the four plastic posts and the two rows of 40 pins.
Make sure to align the Pins on the DE10-nano board with the MiSTer Multisystem connectors. Check
both sides for correct alignment shown above.
We make connection to all the pins supplied by the DE10-nano, so if any resistance is felt, check the
dual in-line and single in-line connectors are all vertically straight.
