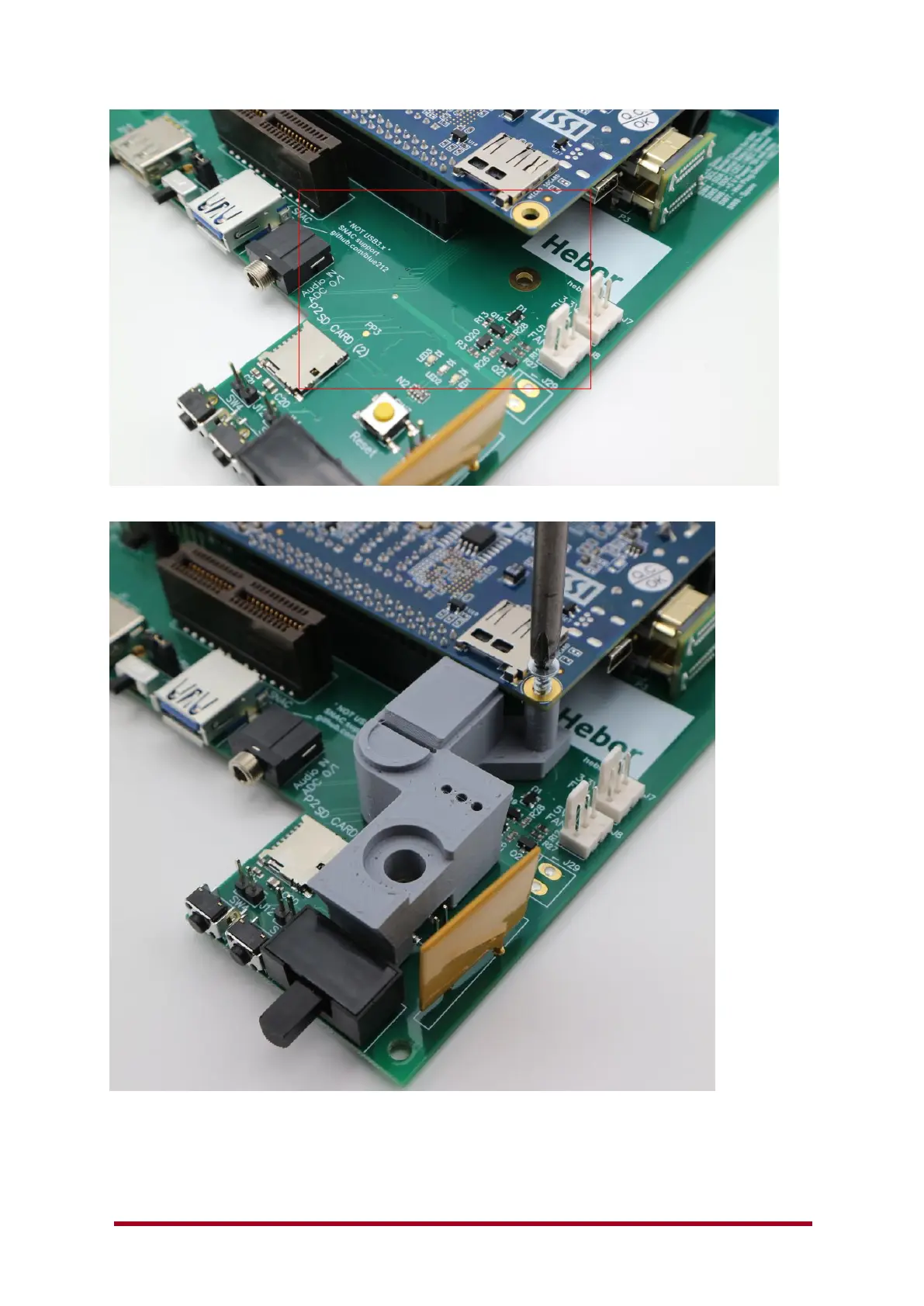

Fit the 3D printed SD-card mount onto the Multisystem motherboard and fix in place with the
supplied 3mm screws, one on the back of the Multisystem and the other is securing the DE10-nano
into the SD-card post mount - as seen above.
Fit the remaining screws to secure the other three corners of the DE10-nano to the Multisystem.
