7.1 Using the Internal RGB SCART connector -
If you wish to use the RGB Euro SCART on the Multisystem you will need a good quality SCART cable,
ideally where all 21 pins are connected and the cable has a dedicated shield connection (See
below).

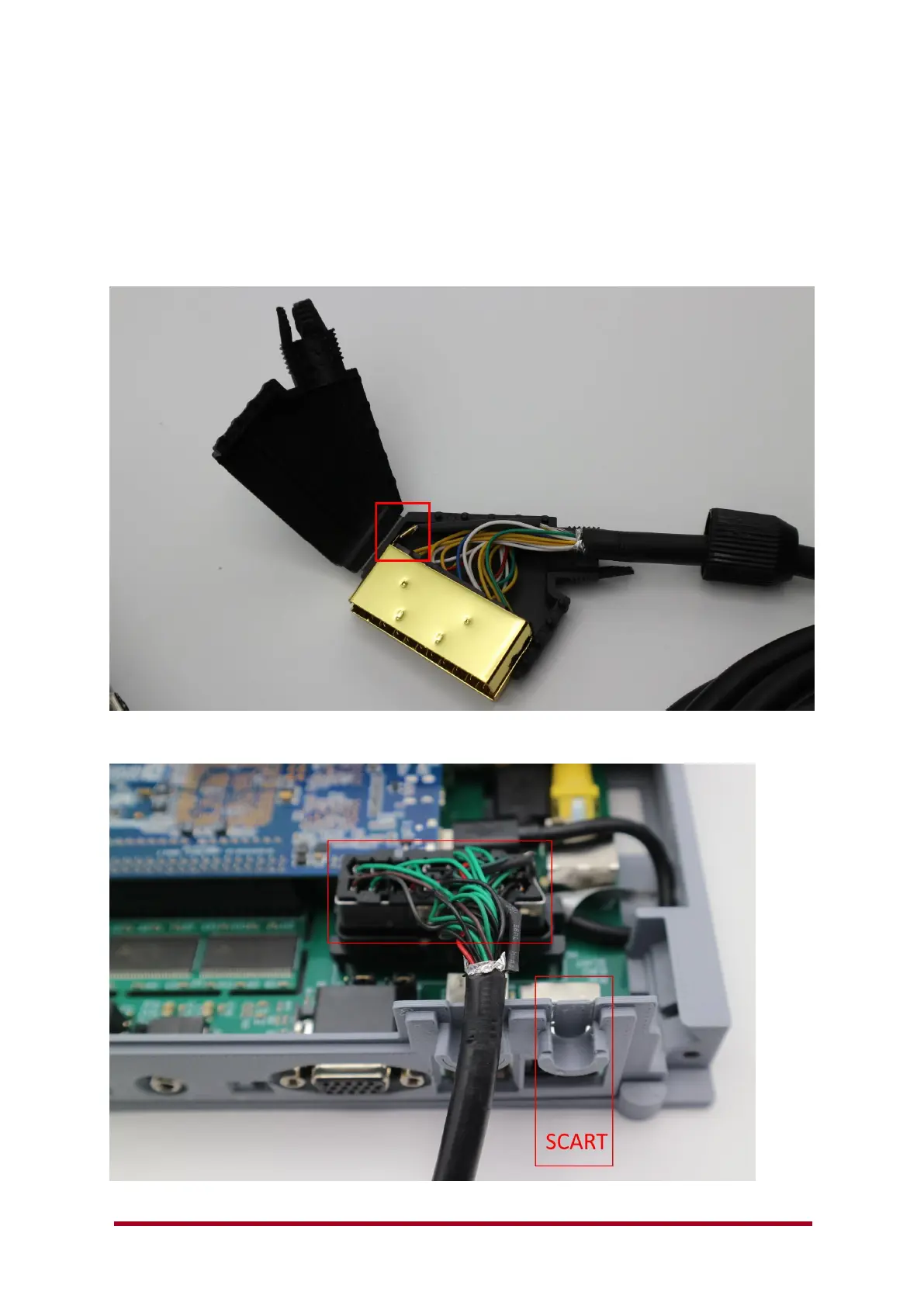

Look for a braided wire that connects to the SCART metal outer shell.
Unscrew the round cable clamp and remove the connector and wiring from the plastic shell.
