HEIDELBERG Speedmaster CD 102 - Pile Change; Preloading Device

GR C49010303002070010 GR C49010303002071010
Preset Plus Feeder
confidential
C.1.9
3 Preloading and pile change
3.1 Preloading device
1 1

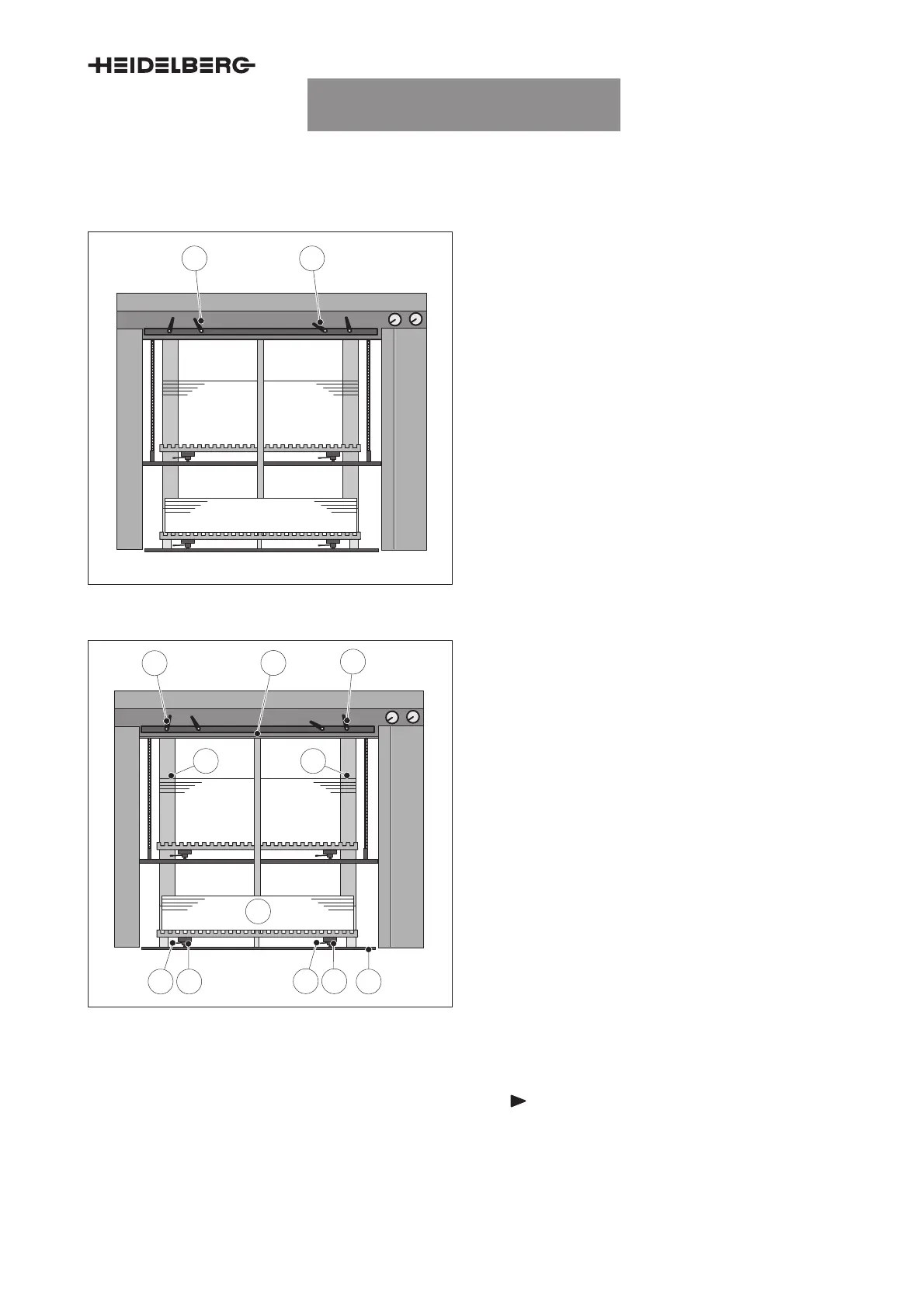

Fig. 9 Preloading device
1. Release the levers at the stops (Fig. 9/1).
2. Adjust the stop on the pull side to the sheet
width. The scale on the guard already takes the
pull distance into account.
3. Adjust the stop on the non-pull side to the sheet
width plus 10 mm.
4. Tighten the locking screws.
7
4 4
6 5
6
5 2
3
3
1
Fig. 10 Pile change
5. Hook the middle stop (Fig. 10/1) in the center
and to the cross bar on the floor (Fig. 10/2).
6. Loosen the locking screws of the guide piece
(Fig. 10/3).
7. Push the guide piece (Fig. 10/4) to the stops.
8. Close the lever.
9. Push the pile carriage on the rails (Fig. 10/5) to
the stops.
10. Close the brakes (Fig. 10/6) on the pile car-
riage.
11. Align the pile (Fig. 10/7).
12. Release the brakes and pull back the pile car-
riage by a short way.
13. Push the guide piece (Fig. 10/4) towards D.S.
or O.S.
Leave the stops at their positions for further pile
changes.
14. Detach the middle stop (Fig. 10/1).
3.2 Pile change
Note
The maximum pile weight is:
- with pile carriage: 1,400 kg
- without pile carriage: 2,000 kg
