HEIDELBERG Speedmaster CD 102 - Air Adjustment

GR SG9013978000000000
GR SG9013083000001000
CP2000 Center
confidential
B.1.3
5.0 mm
1
23
4
5
6

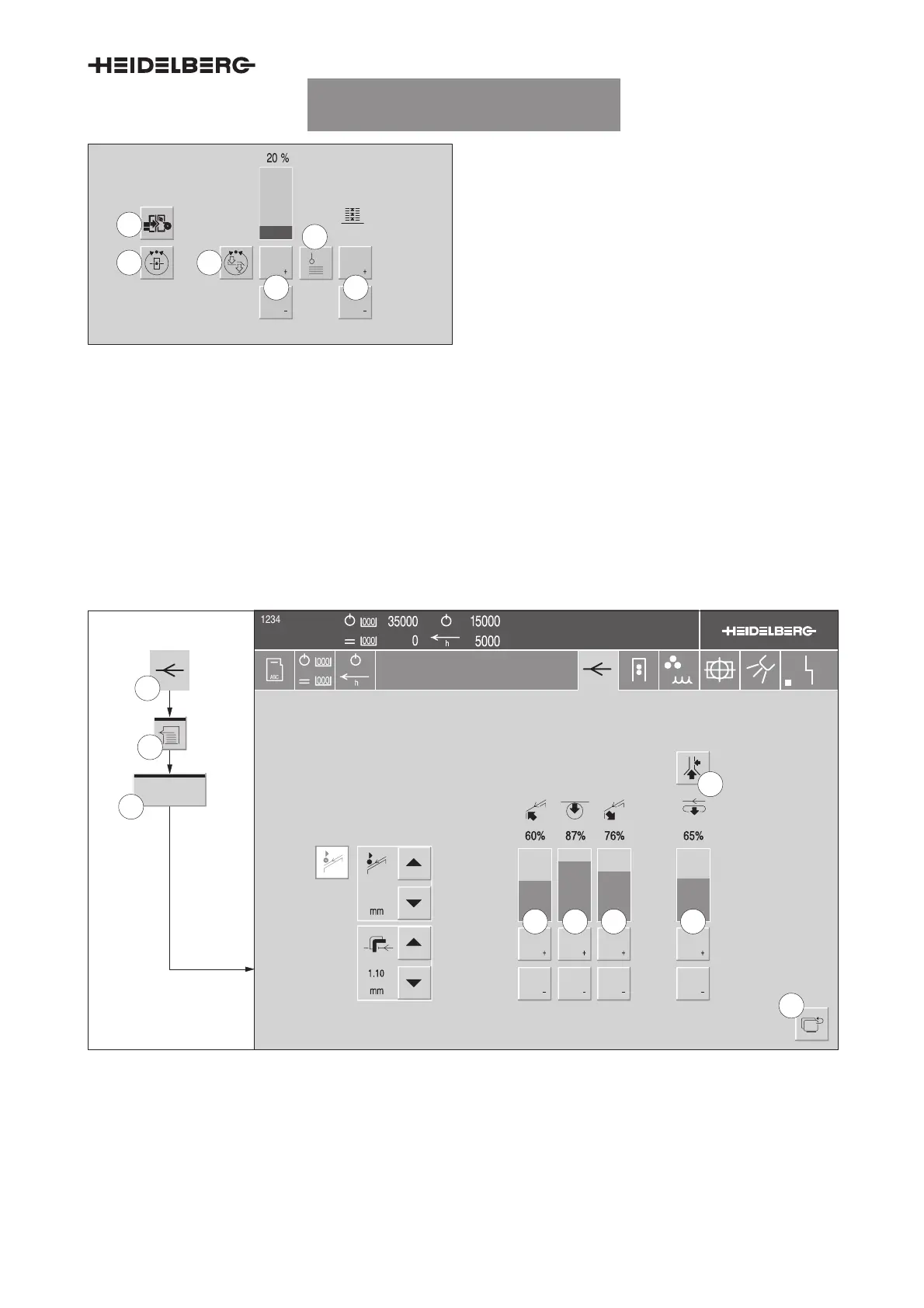

Fig. 3 Sheet travel/Feeder – separation menu
1
Prepare sheeter operation
Prepares the printing press for the operation
with the sheeter.
2 Pile alignment with respect to pull lay
Aligns the pile automatically with respect to the
pull lay.
3
Blast air speed compensation ON/OFF
Adjusts the blast air volume automatically to the
printing speed.
4 Speed-compensated blast air
Speed compensation ON
: The buttons ”+” and
”–” are used for adjusting the compensation
value (0...100 %).
Speed compensation OFF : The buttons ”+” and
”–” are used for adjusting the blast air volume
(20...100 %).
5
Pile height sensor ON/OFF
Switches the pile height sensor on or off.
6
Pile stroke
The buttons ”+” and ”–” are used for adjusting
the pile stroke.
1.3 Air adjustment
ÉÉ
É
É
12345
Job
Name
Feeder/Cover guide, air adjustment
Cover guide,
air adjustment
1
2
3
45
67
9
8
0.30
Fig. 4 Air adjustment - Preset Plus feeder
The following functions can be set in the Feeder/
Cover guide, air adjustment menu:
D The blast air at the blowing/suction nozzle
(Fig. 4/4)
