GR SG9015805000000000
Preset Plus Feeder
confidential
C.1.16
5 Suction head
5.1 Components of the suction head
1
13 14
11
12
2
10
15
16
17
3
4
5
79
6
8

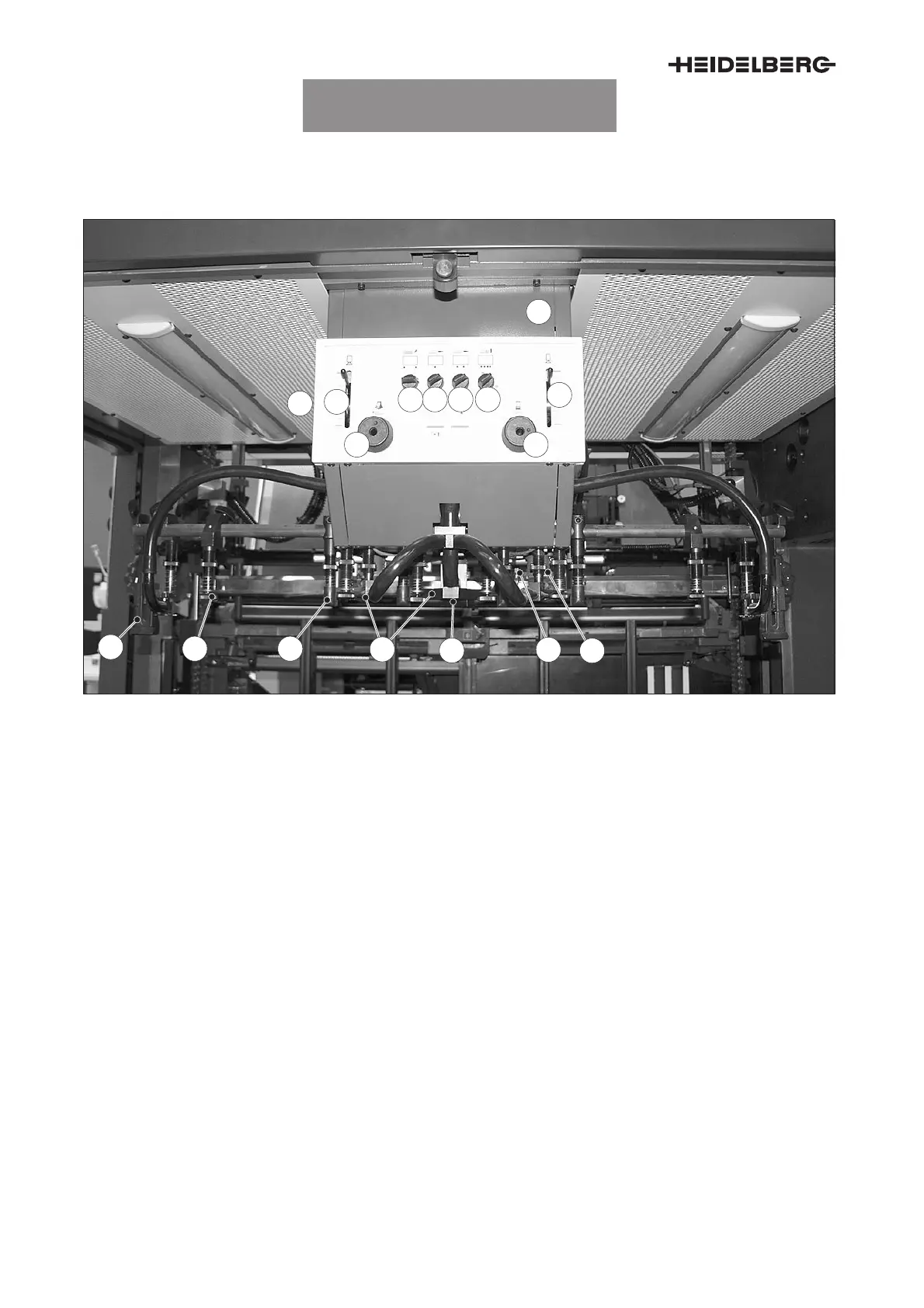

Fig. 17 Suction head – overview
1 Housing
2 Rotary valve
3 Lifting suckers
4 Forwarding sucker
5 Governor foot
6 Carrier air blowers
7 Sheet separation blower
8 Pile stop
9 Sheet separator finger
10 Inclination lifting sucker
11 Height lifting sucker
12 Blast air rear edge blower
13 Blast air carrier air blower inside
14 Blast air carrier air blower outside
15 Blast air sheet separation blower
16 Height forwarding sucker D.S.
17 Height forwarding sucker O.S.
UTKSG9015030001000000
UTKSG9015030000000000003
