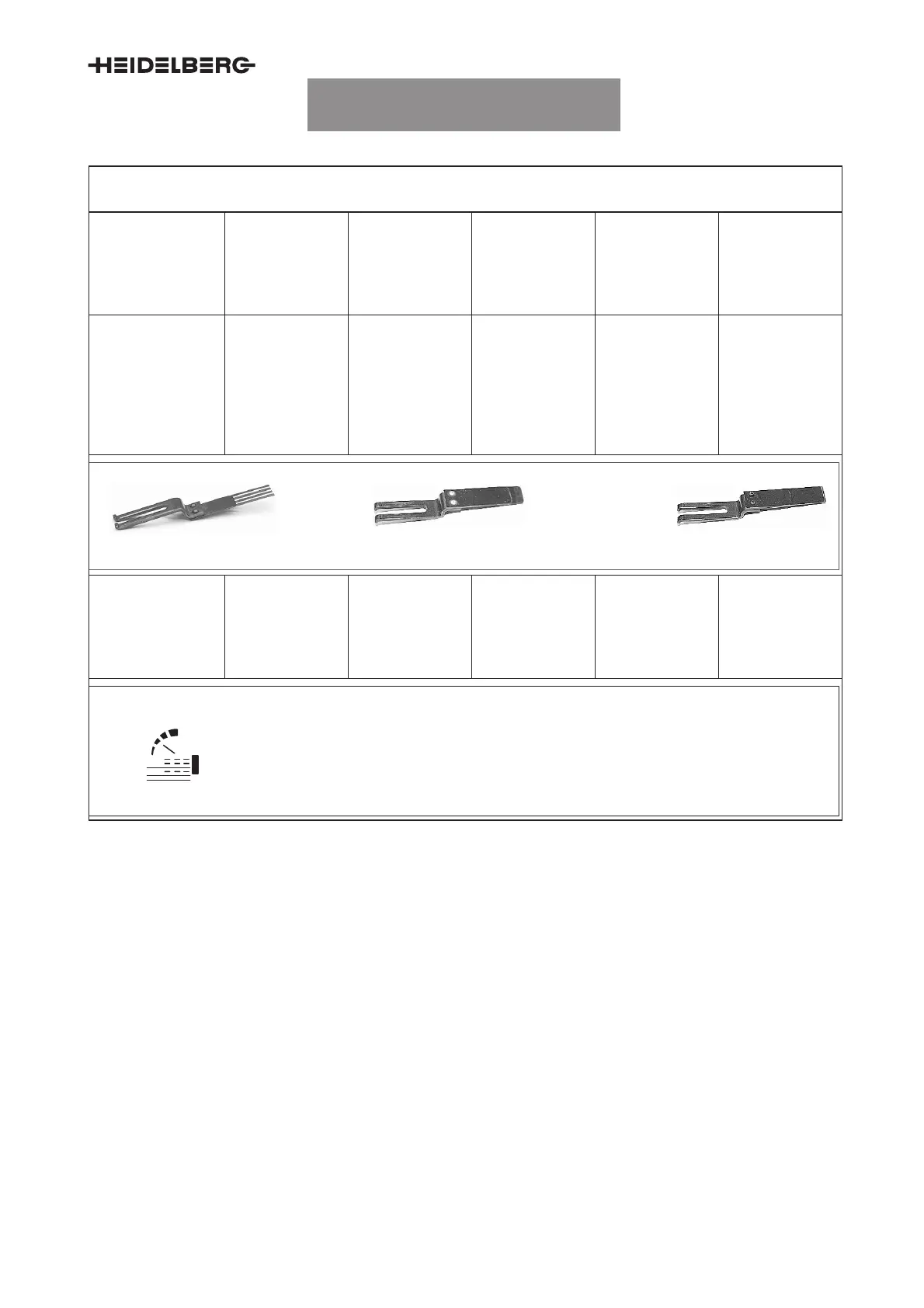

6.2 Sheet separator fingers and sheet separation blowers
Printing
materials
Voluminous,
porous
(40 ... 100 g)
Onion skin pa-
per, light-
weight
(30 ... 60 g)
Labels, light-
weight paper,
art printing
(60 ... 130 g)
Art printing,
lightweight
cardboard
(100 ... 200 g)
Cardboard
(> 200 g)
Sheet separator
fingers
Inside
Height
Outside
Height
Slotted A
0 mm
Brush A
0 mm
Slotted A
0 mm
Brush A
0 mm
Normal B
0 mm
Brush B / A
0 mm
Normal B
0 mm
Brush B
0 mm
Norm./thick C/B
3 mm
Brush B
0 mm
AB C
Sheet separa-
tion blowers
Height
Air volume A
5 ... 10 sheets
Position 1...2
5 ... 10 sheets
Position 1...2
5 ... 10 sheets
Position 2...3
5 ... 10 sheets
Position 2...3
5 sheets
Position 3...4
1
2
3
4
A
Tab. 3 Setting sheet separator finger and sheet separation blower
