HEIDELBERG Speedmaster CD 102 - Pile Control Control Panel

GR SG9015883000000000
Safety
confidential
A.1.10
4.2 Pile control control panel
5
6
7
2
3
4
1

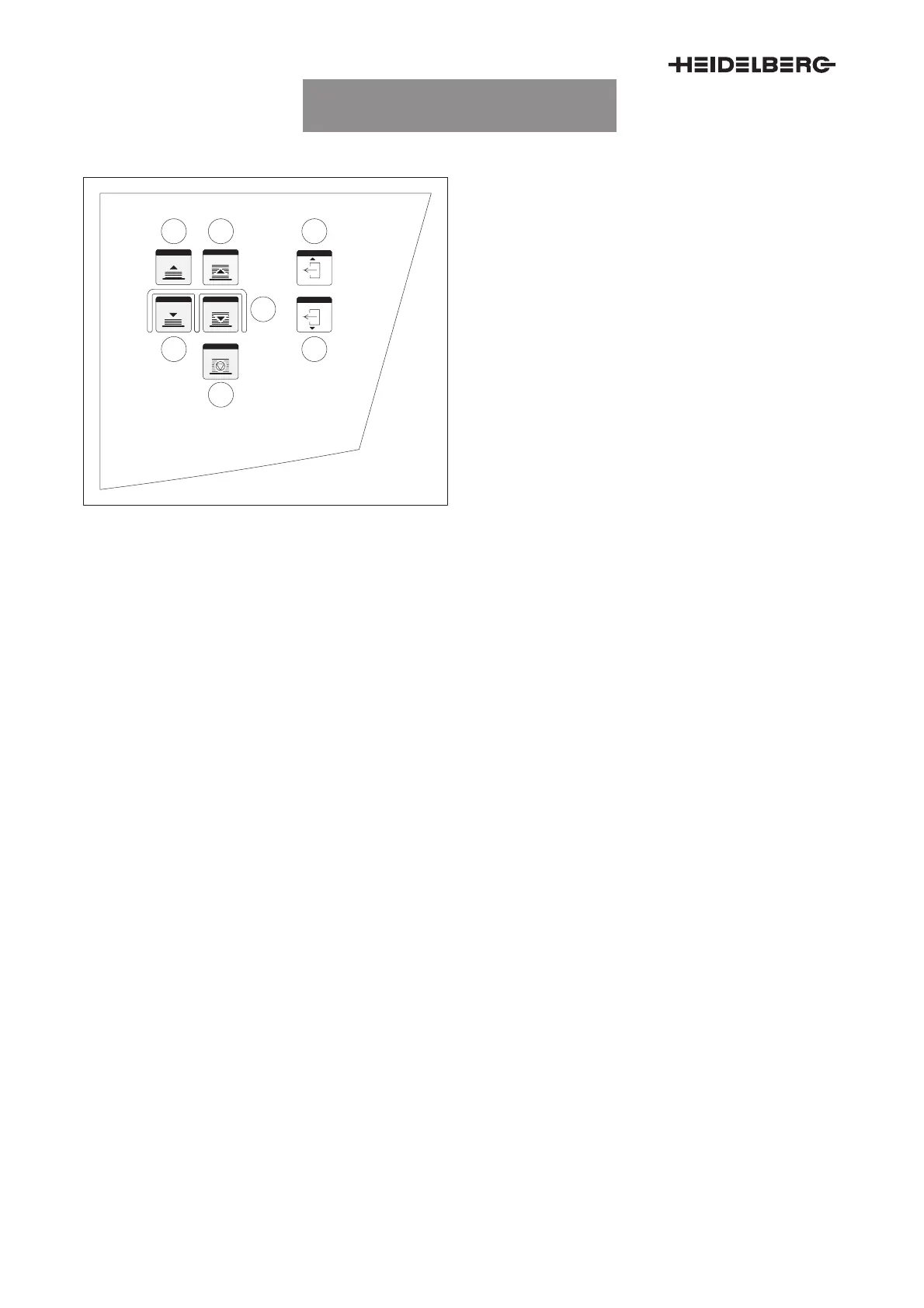

Fig. 9 Pile control control panel
1
Auxiliary pile up
The auxiliary pile moves upwards as long as
the button is pressed.
2
Auxiliary pile down
The auxiliary pile moves down as long as the
button is pressed.
3 Main pile up
The main pile moves upwards as long as the
button is pressed.
4 Main pile down
Moves the main pile down. The downward
movement stops approximately 12 cm above
the ground. Pressing the button again briefly
moves the pile support plate down to a distance
of approximately 1 cm above the floor. Pile sup-
port plate and pile support frame are centered
and set down to the floor.
5
Pile stop
Interrupts the movement of auxiliary pile and
main pile.
6
Pile to D.S.
”Manual” mode: Moves the active pile to D.S.
7
Pile to O.S.
”Manual” mode: Moves the active pile to O.S.
