Safety
confidential
A.1.9
34
3532
3633
37
38

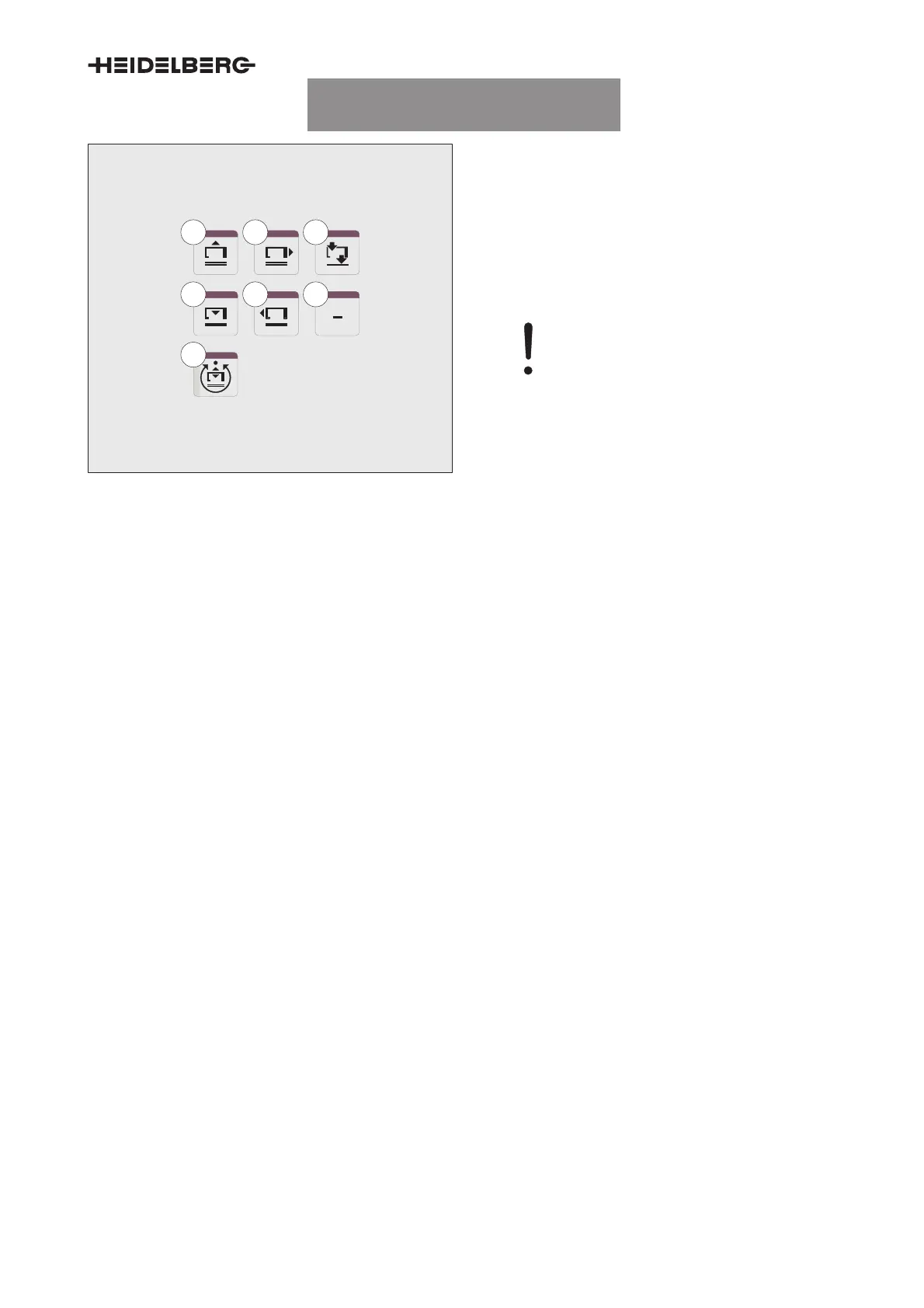

Fig. 8 Feeder control panel, detail
32
Suction head up
Automatic mode: Increases the nominal value
of the height adjustment.
Manual mode: Moves the suction head up.
33
Suction head down
Automatic mode: Decreases the nominal value
of the height adjustment.
Manual mode: Moves the suction head down.
Caution – Danger of collision!
The suction head can collide with the
pile when it is moved down. Lower the
pile before you move the suction head
downwards.
34
Height adjustment automatic ON/OFF
Selects the height adjustment operating mode.
The LED is ON: ”Automatic”
The LED is OFF: ”Manual” mode
35
Increase suction head sheet size
Moves the suction head away from the forward-
ing rollers.
36 Reduce suction head sheet size
Moves the suction head in the direction of the
forwarding rollers.
37
Increase blast air compensation
Increases the blast air volume of the blast air
compensation.
38
Reduce blast air compensation
Reduces the blast air volume of the blast air
compensation.
