Preset Plus Feeder
confidential
C.1.11
1

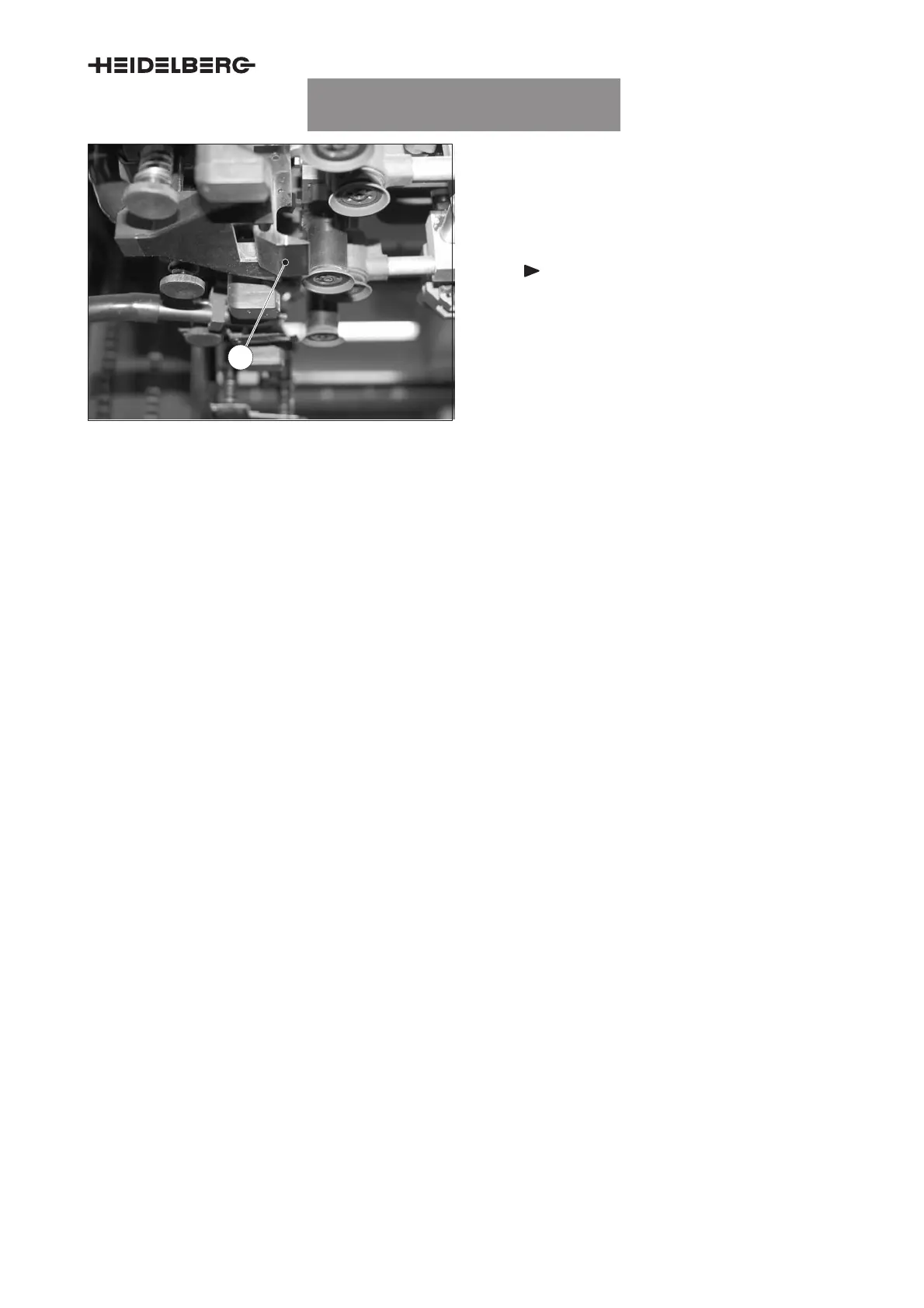

Fig. 11 Governor foot in inquiry position
When feeder and pile centering are switched on, the
pile automatically moves to the governor foot after
the alignment process has been completed.
If the feeder is not switched on, you must raise the
pile manually.
Note
The governor foot (Fig. 11/1) on the
suction head must be in inquiry posi-
tion (Fig. 11).
7. If the governor foot is not in inquiry position:
Switch the feeder off and back on.
The governor foot automatically swivels to the
inquiry position.
8. Press the
Main pile up
button until the pile
stops.
