GR SG9015798000000000
Preset Plus Feeder
confidential
C.1.19
3 mm
1

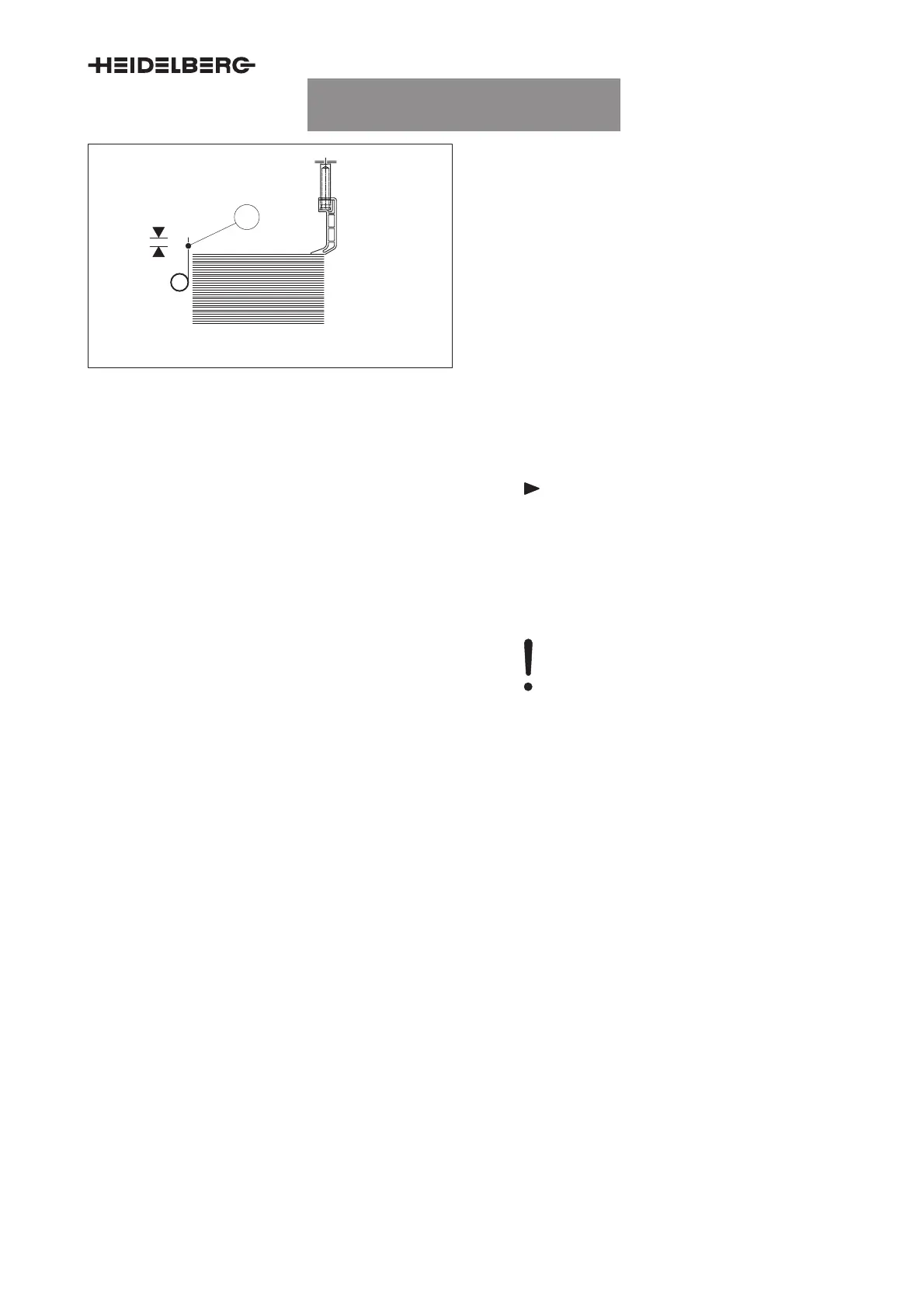

Fig. 21 Forwarding flap diagram
Manual operation
In manual mode, the suction head does not change
its height adjustment. The height difference between
upper pile edge and forwarding flap can therefore
change.
1. Adjust the suction head such that, during pro-
duction, the upper edge of the pile is approxi-
mately 3 mm below the upper edge of the for-
warding flap.
Manual mode – changing the height adjustment
of the suction head
Condition
Automatic front edge control is
switched off - the LED in the button
(Fig. 19/3) is OFF.
D Press the
Suction head height adjustment up
button (Fig. 19/1) to move the suction head up.
Caution – Risk of collision!
The suction head can collide with the
pile when it is moved down. Lower the
pile before you move the suction head
downwards.
D Press the
Suction head height adjustment down
button (Fig. 19/2) to move the suction head
down.
The current actual value is displayed on the MID.
