GR SG9015834000000000
Preset Plus Feeder
confidential
C.1.46
1
2

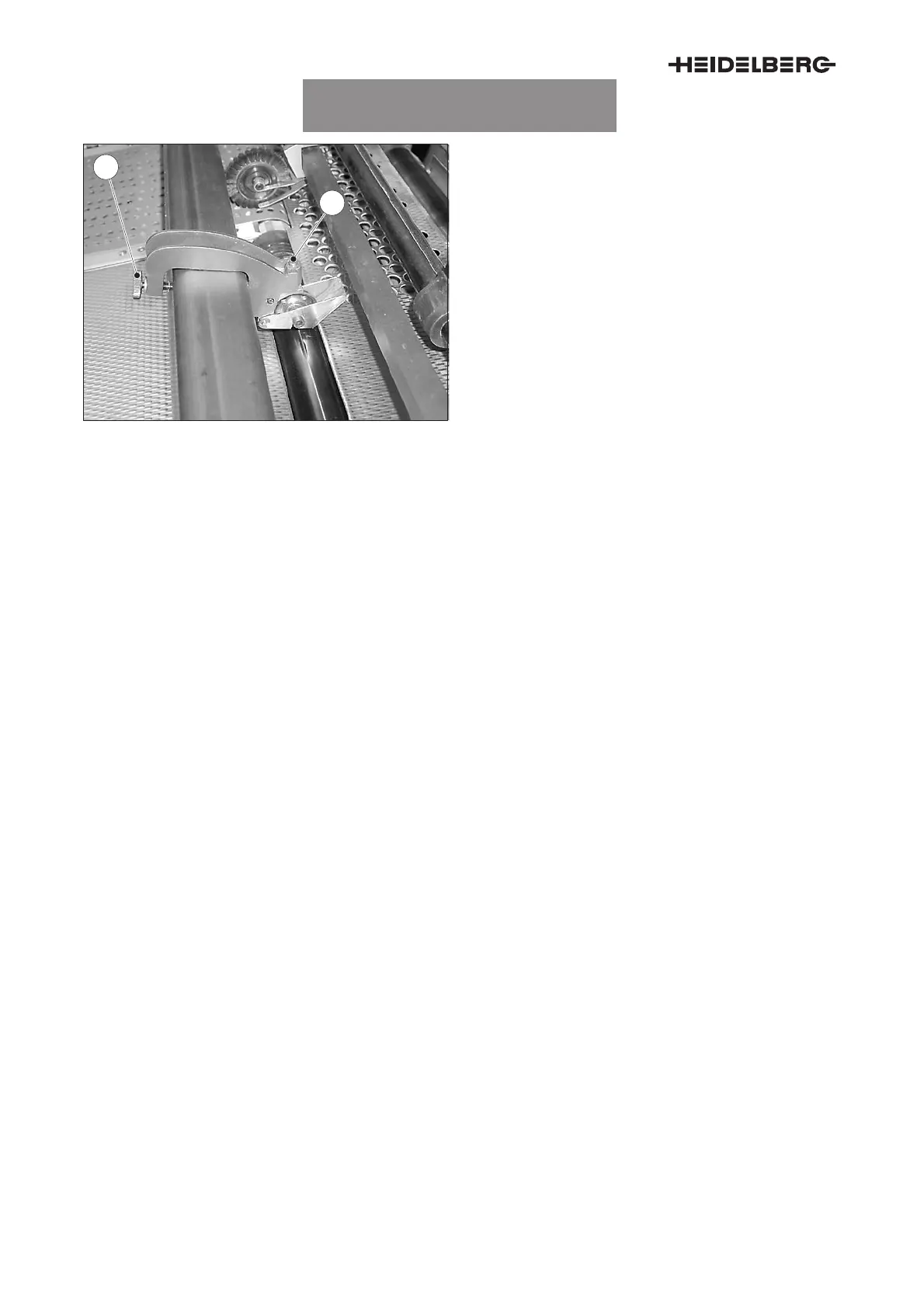

Fig. 57 Feeler roller
Installing the feeler roller
You can install 1 ...24 feeler rollers on the cross bar.
Four feeler rollers are included in the scope of deliv-
ery of the press. The more feeler rollers are installed
on the cross bar, the smaller are the bits of paper
that can be detected.
1. Set the feeler roller (Fig. 57) onto the cross bar
and push it to the required position.
2. Secure the feeler roller on the cross bar with
the knurled head screw (Fig. 57/1).
Basic adjustment
You must check the basic adjustment
D when you install additional feeler rollers,
or
D when you move one or more feeler rollers.
1. Switch on the feeder.
2. Set the stock thickness on the control knob
(Fig. 56/3) to minimum sheet thickness (turn the
control knob fully to the right).
3. Adjust each feeler roller at the stud (Fig. 57/2)
such that it just follows the suction tape drive
roller.
