1.3 Ribbon cartridge features
CP55 printer uses the ribbon cartridge as below picture.

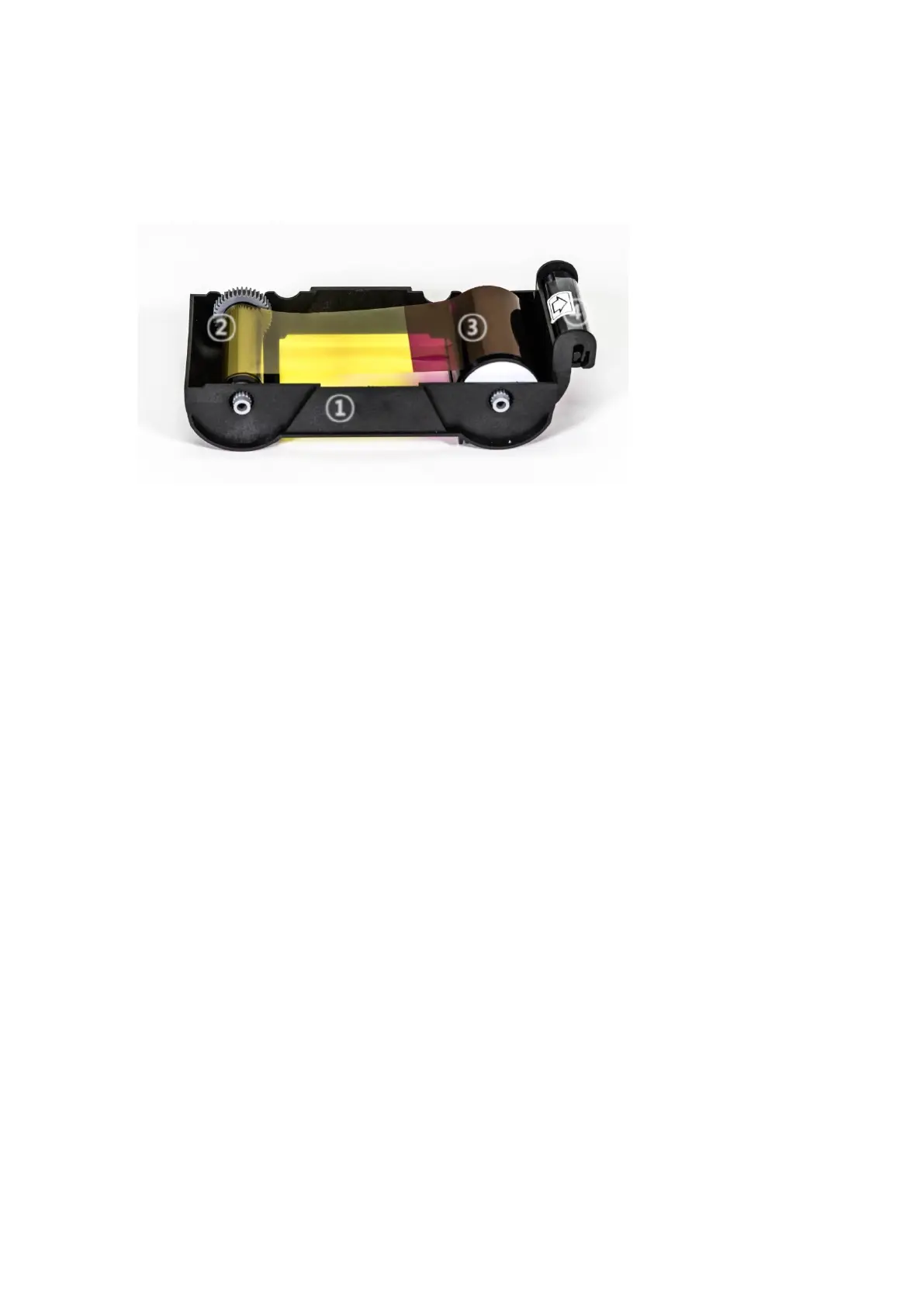

Figure 6 Ribbon cartridge features
① Ribbon cartridge
-. Install a ribbon and a disposable cleaning roller provided with the ribbon.
-. This semi-permanent ribbon cartridge is a component of the printer. Printer does
not operate if it is broken or damaged. In this case, please contact printer reseller.
② ③ Take up & Supply parts
-. Ribbon is wrapped to the supply parts as the Picture. It should be installed as the
Figure.6
④ Disposable cleaning roller
-. It removes dust on the surface of card to improve print quality before the card is
printed.
It should be changed together with the ribbon.
-. After installing the disposable cleaning roller to the ribbon cartridge, peel off the
protective film.
-. It is provided with the ribbon.
Ribbon cartridge
Take up parts
Supply parts
Disposable
Cleaning Roller
①
② ③
④
