1.4 Display and Buttons
Control panel of Printer consists of 2 lines LCD and 2 buttons. The 2 buttons have the functions
as shown in the Figure 7. The main LCD message of CP55 printer is ‘HEIDI CP55-S’. On the
other hand, CP55 Dual printer is ‘HEIDI CP55-D’.

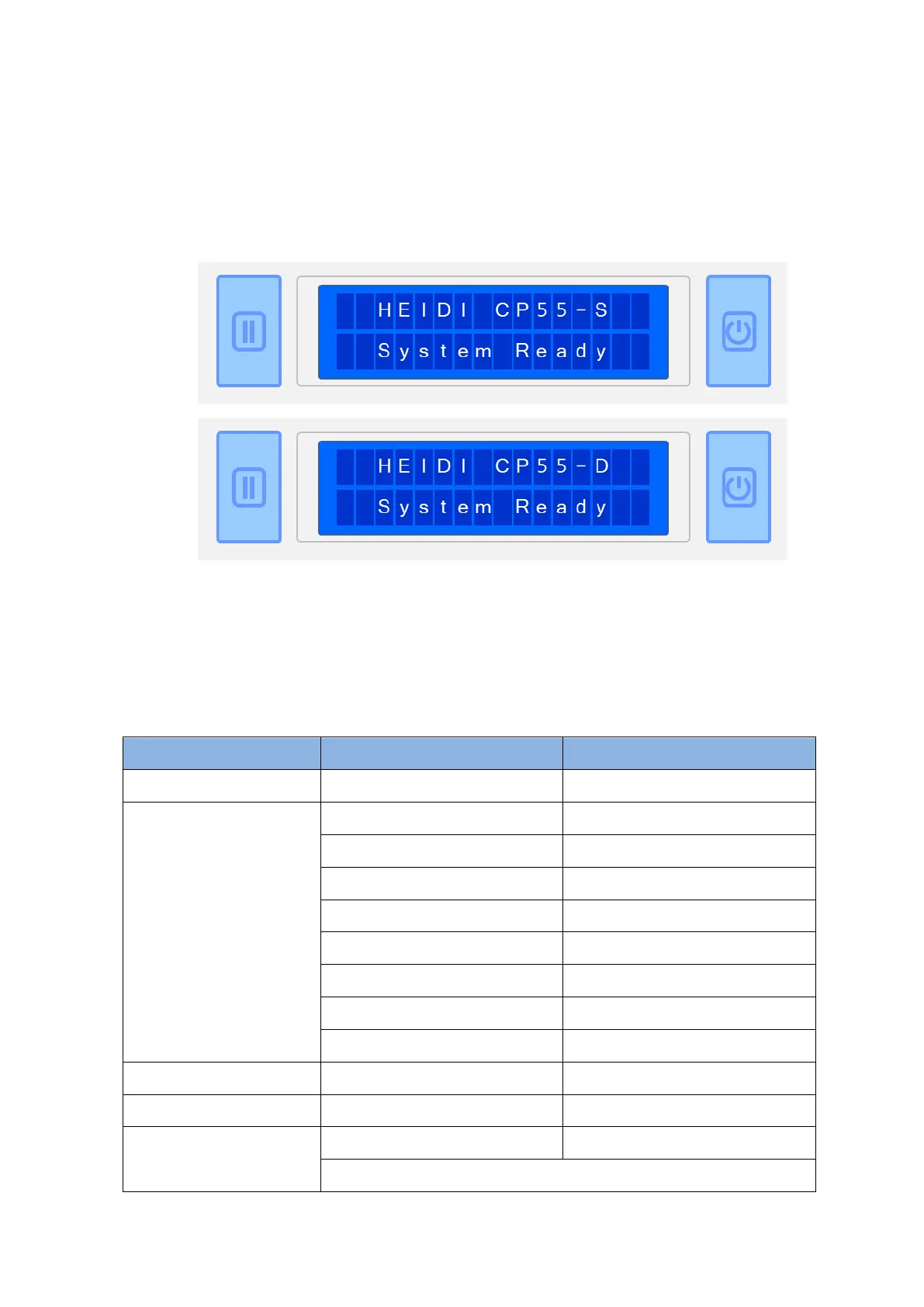

Figure 7 CP55-S & CP55-D Display and Buttons
The status of CP55 is ‘Initializing’ when boot up. It is changed to ‘System Ready’ if the printer is
fine. It is change to ‘Printing’ when the printer is working. In case of sensing an error, it is
changed to ‘Error’ status. Whenever the top cover is opened, the operation is stopped and the
status is ‘Top Cover Open’.
The functions of the button under each status are as below table.
Status
Left Button
Right Button
Initializing
N/A
N/A
System Ready
Ribbon Type/Balance
Sleep (Hold on 5 sec.)
User Printed Counts
Initializing (when Sleep Mode)
Do Test Print
OK
Network IP Address
Subnet
Gateway
Network MAC Address
Pulling out the card
Printing
N/A
N/A
Error
Retry
Cancel
Top Cover Open
Move to backward a card
Move to forward a card
Cleaning Mode (when both buttons are pushed)
Left
Button
Right
Button
Two Line LCD
