6.3. TPH (Thermal Print Head) replacement

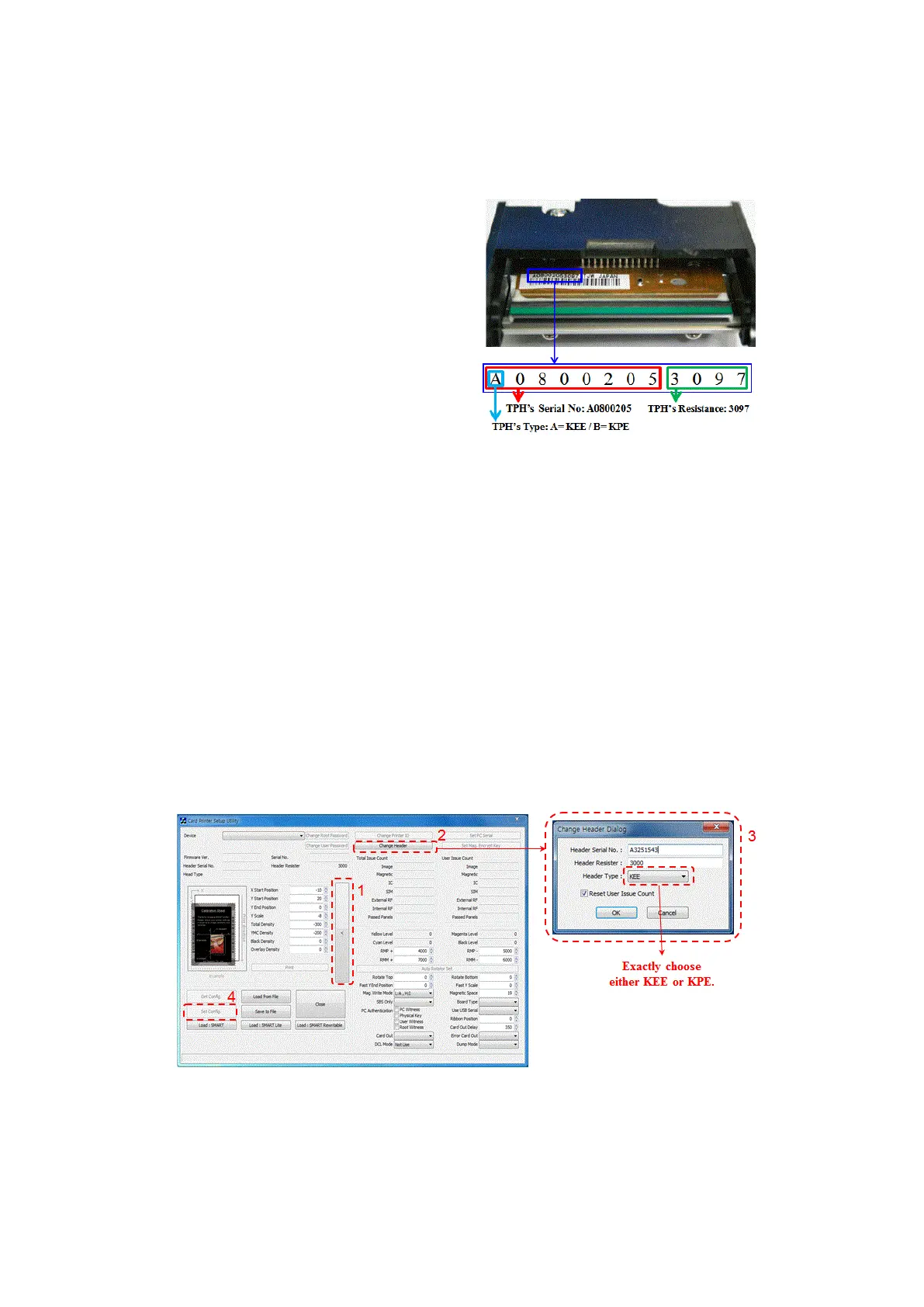

1. Check the serial number and the
resistance of new Thermal Print H
ead as
the Figure.
TPH type: A = KEE, B = KPE
Serial No.: see the red box.
TPH resistance: see the green box.
Figure 94 Thermal Print Head
2. Set up the new TPH’s configuration using CardPrinterSetup program.
Step1: Run ‘Card Printer Setup’ in Utilities of the installation CD and click expansion
button.
Step2: Click “Change Header” in the extended setup.
Step3: Input the TPH’s Serial No., Resistance and Type (choose KEE or KPE) on the
TPH’s label, and click “OK”.
Step4: Click “Set Config” to set the new TPH’s configuration.
Figure 95 Print head setup
