(4) Front overhang for trucks picking up the lithium battery L2（see the brochure for
distance from the center of front wheel to fork front surface of the selected truck.）
(5) Load center C (lithium battery: 488mm)
The rated capacity of selected truck picking up lithium batteries shall be more than the
calculated result Q2.
For example, we want to check whether the 80V/600Ah lithium batteries equipped on
the H3 series 2.5 t electric forklift truck can be picked up by another H3 series 2.5 t electric
forklift truck. It is known that the fork length L4 of the 2.5 t electric forklift truck of Heli H3
series is 1070 mm. The front overhang L2 of the truck is 465 mm, the fork feed L9 is about
720 mm, and the lithium battery weight Q1 of 80V/600Ah is 1185 kg.

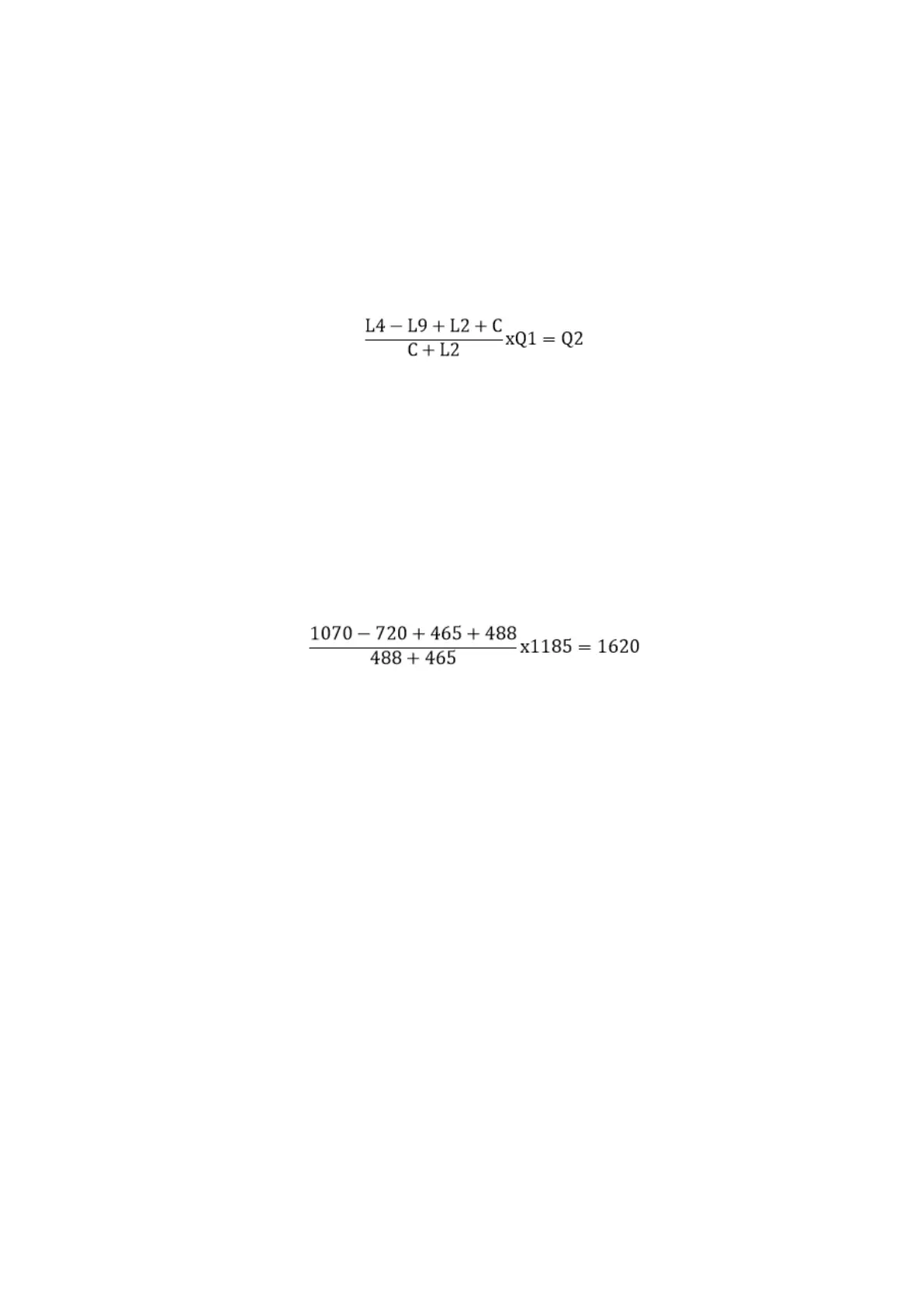

Substitute the above data are into the formula to calculate:
The calculation results show that Q2 is 1620 kg and the rated lifting weight Q of H3
series 2.5 t electric forklift truck is 2500 kg.
Check that: Q > Q2, so the H3 series 2.5 t electric forklift can be used to pick up the
80V/600Ah lithium battery.
3. Steps to change the lithium battery
Change the lithium battery according to the following steps:
（1）Open the side door.
