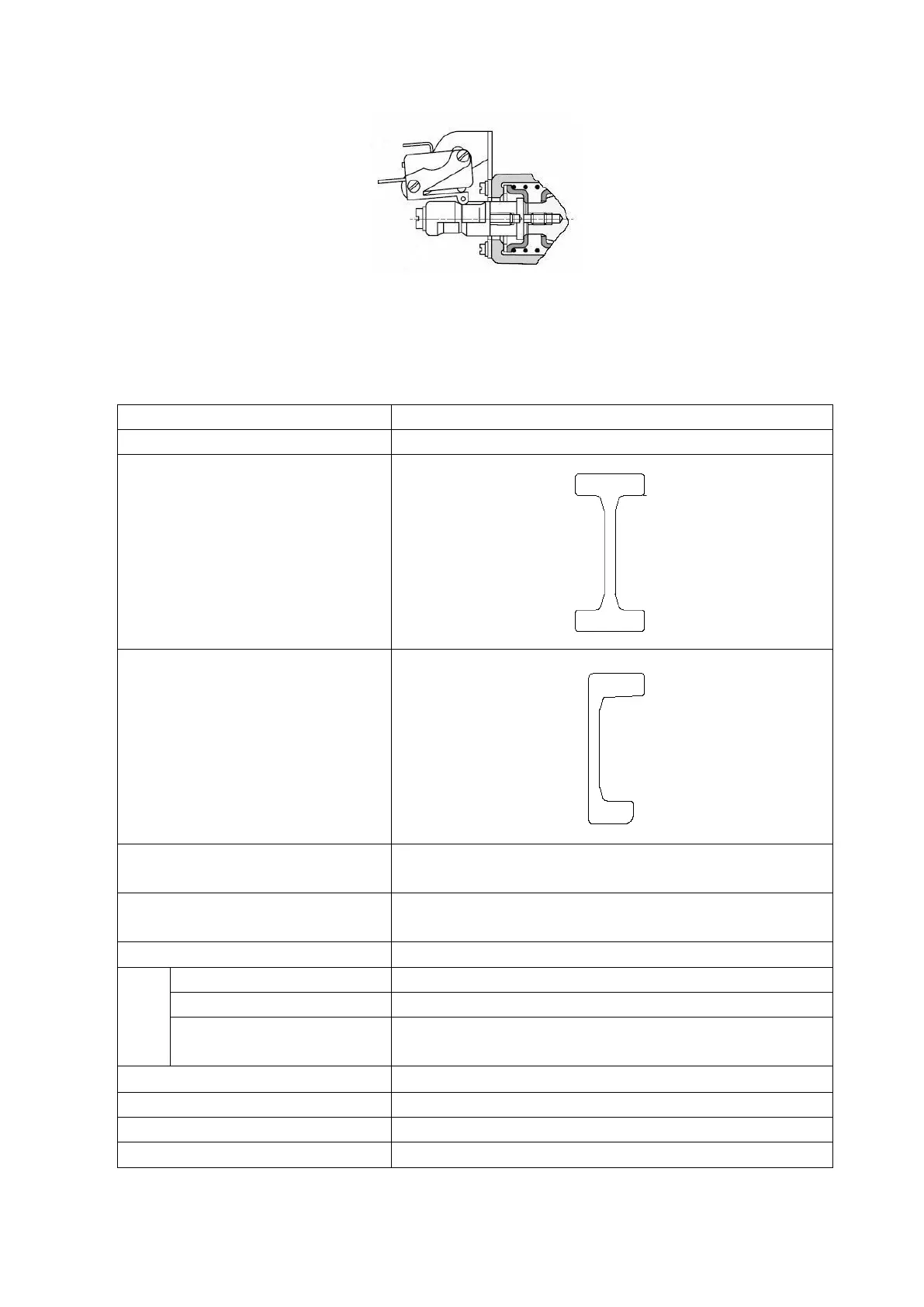

Figure 5-7 Stroke switch built at the end of the covers of tilting piece and auxiliary piece
6. Lifting system
Table 6-1 Main parameters
Item
Content
Mast type
Rolling type, weld mast with free lift, two-stage telescopic type
Cross section of inner mast
Cross section of outer mast
Max. lifting height
（standard mast）
3000mm
Height, mast lowered L
（standard mast）
2230mm
Tilting angle (front/rear)
6°/8°
R
oller
Outer diameter of main roller
Φ128
Outer diameter of side roller
Φ58
Outer diameter of combined
roller (fork carrier)
Φ128
Lifting chain
HRLH1644011-N，pitch 25.4
Lifting mode of fork
Hydraulic type
Tilting mode of mast
Hydraulic type
Adjusting mode of fork space
Manual operation
