6

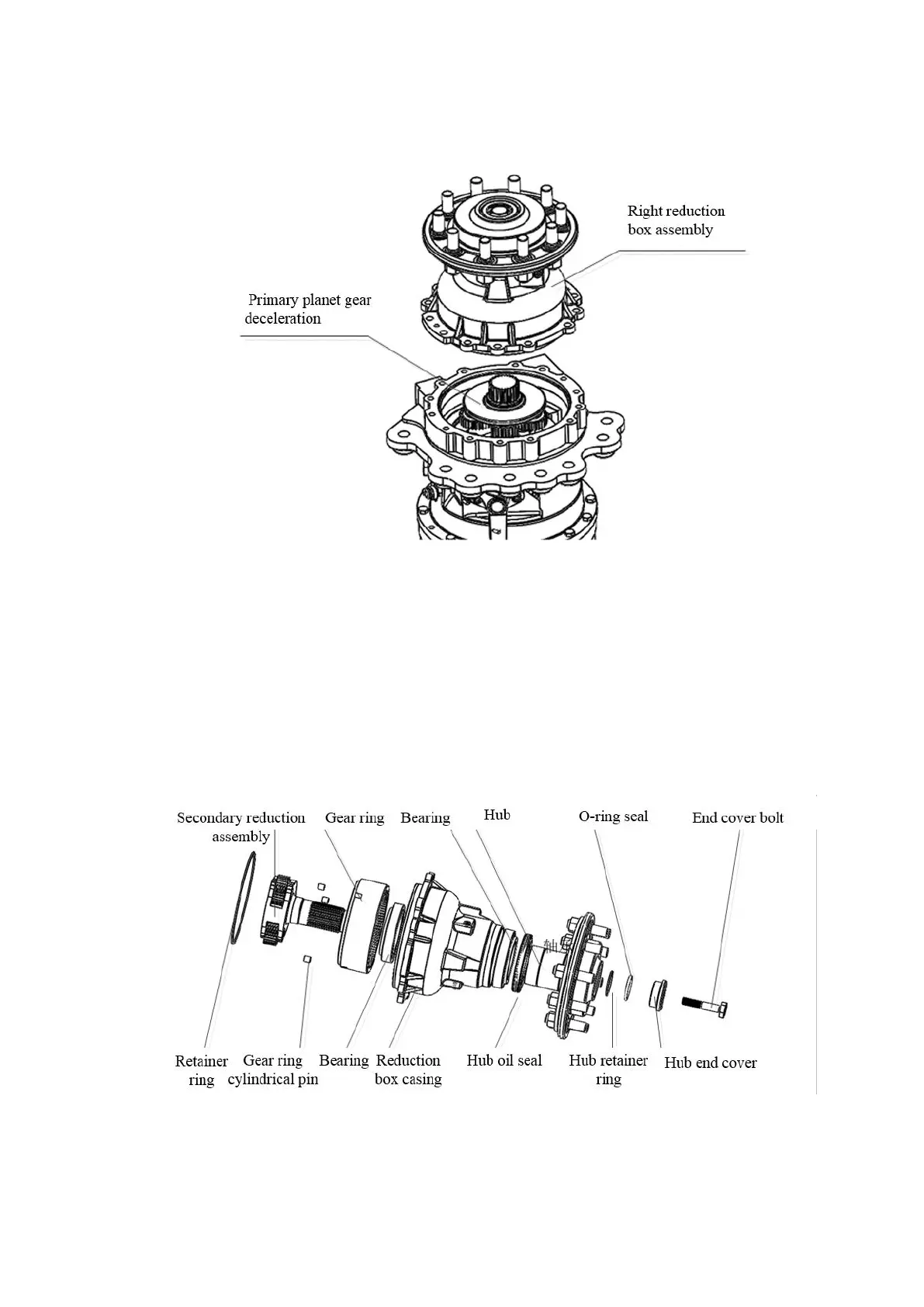

Remove the end cover bolt of the reduction box assembly, remove the hub end cover,
O-ring seal and hub retainer ring in turn; Then remove the retainer ring, secondary reduction
assembly, gear ring cylindrical pin and gear ring from the other side in turn, and the
disassembly complete. The removal of the left reduction box assembly shall be consistent
with this.
1.2.2 Disassembly of wet friction plate
After removing the right reduction box assembly, remove the short axle, press plate,
