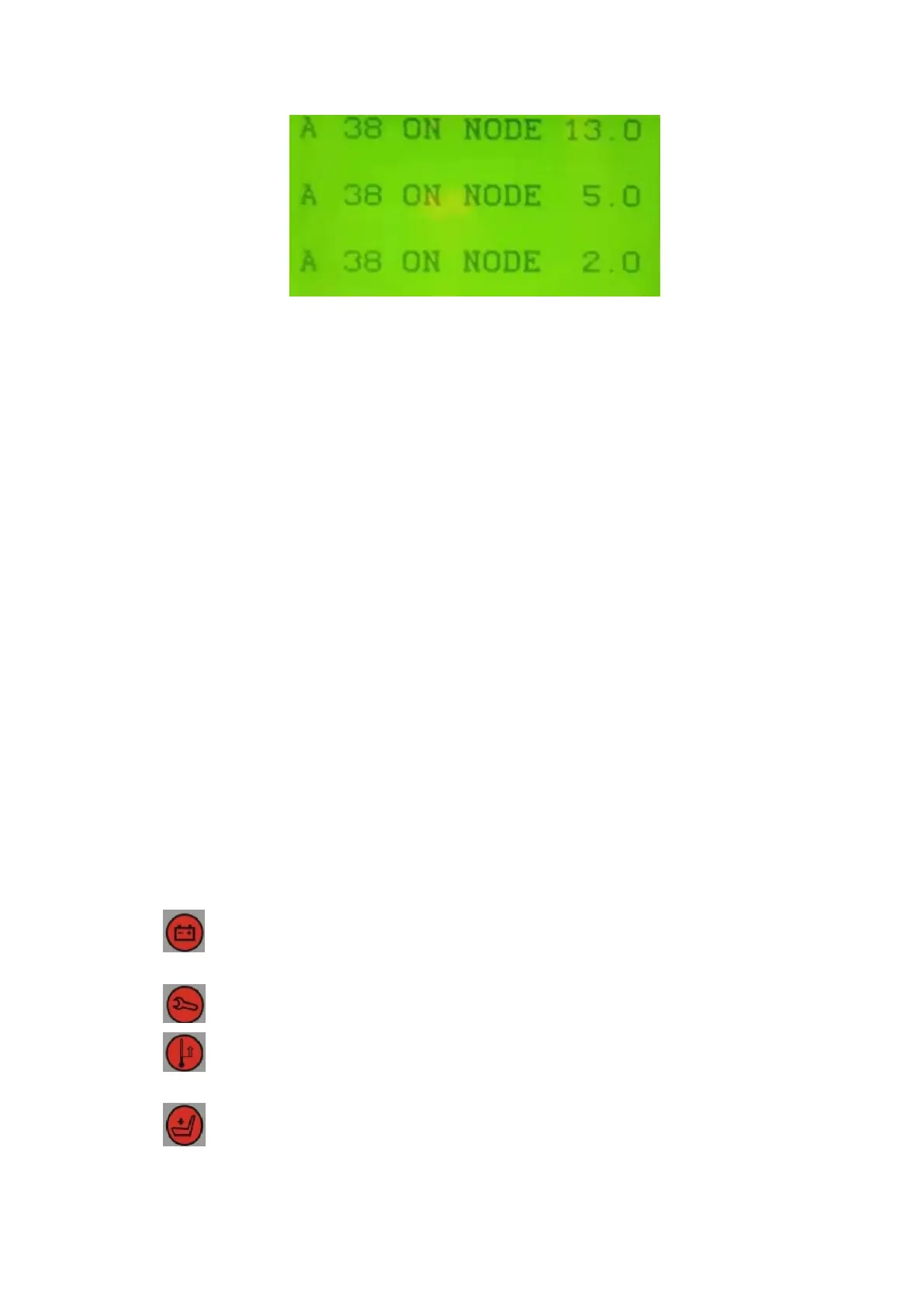

Fig. 4-8 Instrument interface - fault display
4.2.2.4 Functions and applications
(1) Milemeter
The number shows the total mileage of the current truck.
(2) Battery status
Display the current battery power icon, the top of the battery icon shows the current
power value.
(3) Travelling mode
Display the current working mode, there are "P", "E", "S" three types.
(4) Steering wheel angle indication
Represents the direction of the steering wheel.
(5) Travelling speed
Display the current vehicle driving speed, with unit km/h.
(6) Fault code display
Display vehicle current fault code.
(7) LED indicator light
When the battery power is less than or equal to 20%, the low power indicator is
on;
Fault warning light; when there is a fault, this LED light will always flash;
Controller high temperature warning light; When the temperature of any controller
is high (generally higher than 85 °c), the LED light is always on;
The seat indicator is on when the driver leaves the seat;
