20
1.hub cover
21.washer 16
2.hub
22.support seat of steering axle
3.hub bolt
23.sleeve
4.hub nut
24.shim
5.left steering knuckle
25.end cover
6.link rod
26.sleeve
7.straight through type grease nipple
27.V type seal ring
8.steering cylinder assembly
28.washer
9.steering axle assembly
29.thrust washer
10.baffle
30.main pin
11.bending type grease nipple
31.washer 6
12.right steering knuckle
32.bolt M6x12
13.ES type knuckle bearing
33.oil seal
14.link pin
34.bearing 31311
15.retainer ring 16
35.bearing 31309
16.locating pin
36.nut M40x1.5
17.washer 20
37.washer 40
18.bolt M20x1.5x40
19.bolt M16x1.5x65
20.washer 16

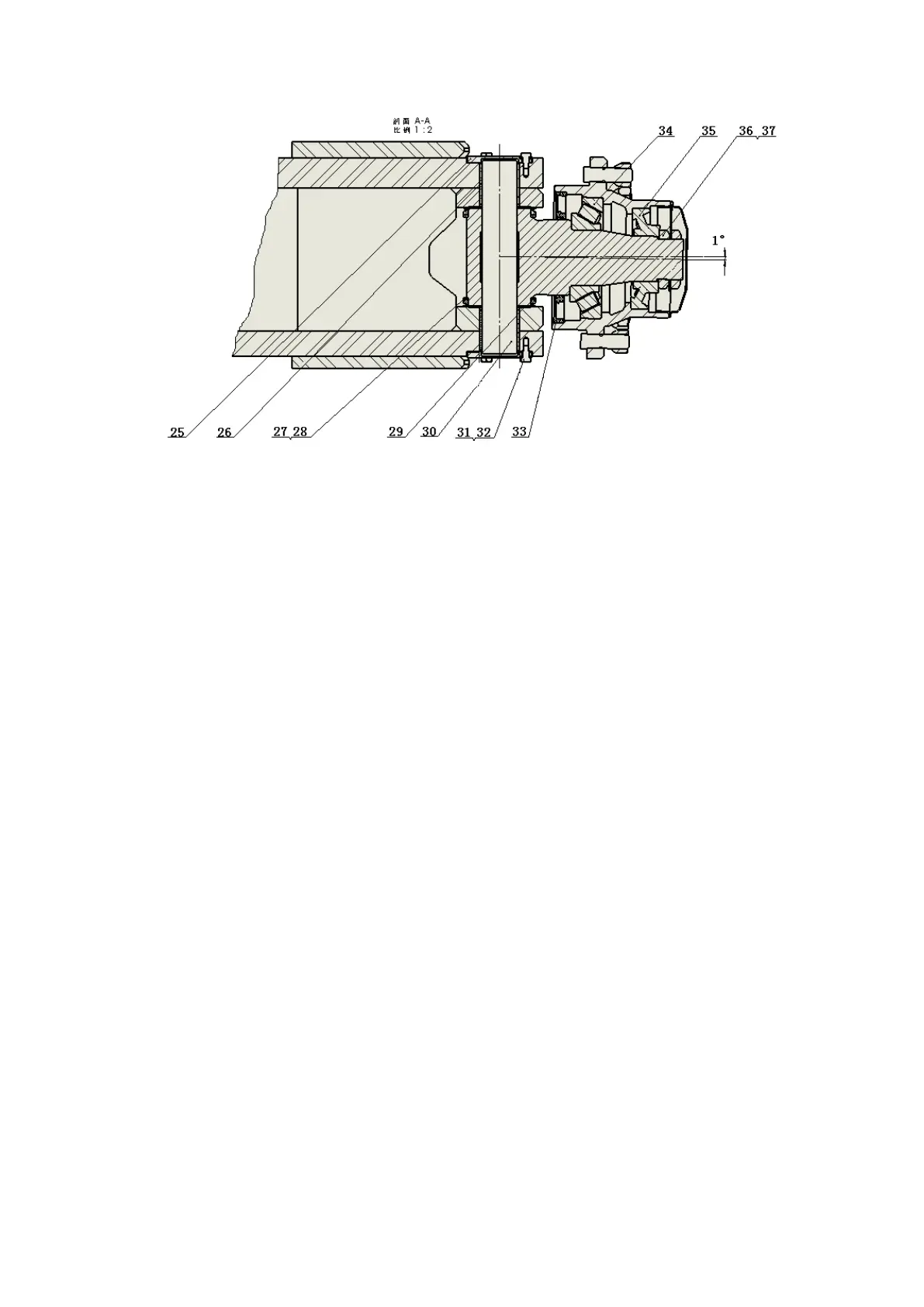

Figure 3-5 Steering axle
3.1.6 Steering cylinder
Steering cylinder is a double-acting piston cylinder (fig. 3-4). Both ends of piston rod
are connected with steering knuckle assembly through connecting rod. The output pressure
oil of full hydraulic steering gear enters the steering cylinder through high-pressure rubber
tube, and the hydraulic oil drives the piston rod to move left and right parallel to realize
steering. Piston and piston rod are fixed axially by steel ball, the seal between piston and
