Ch. 10 WHEEL DRIVE SHAFT/PROPELLER SHAFT
10-5

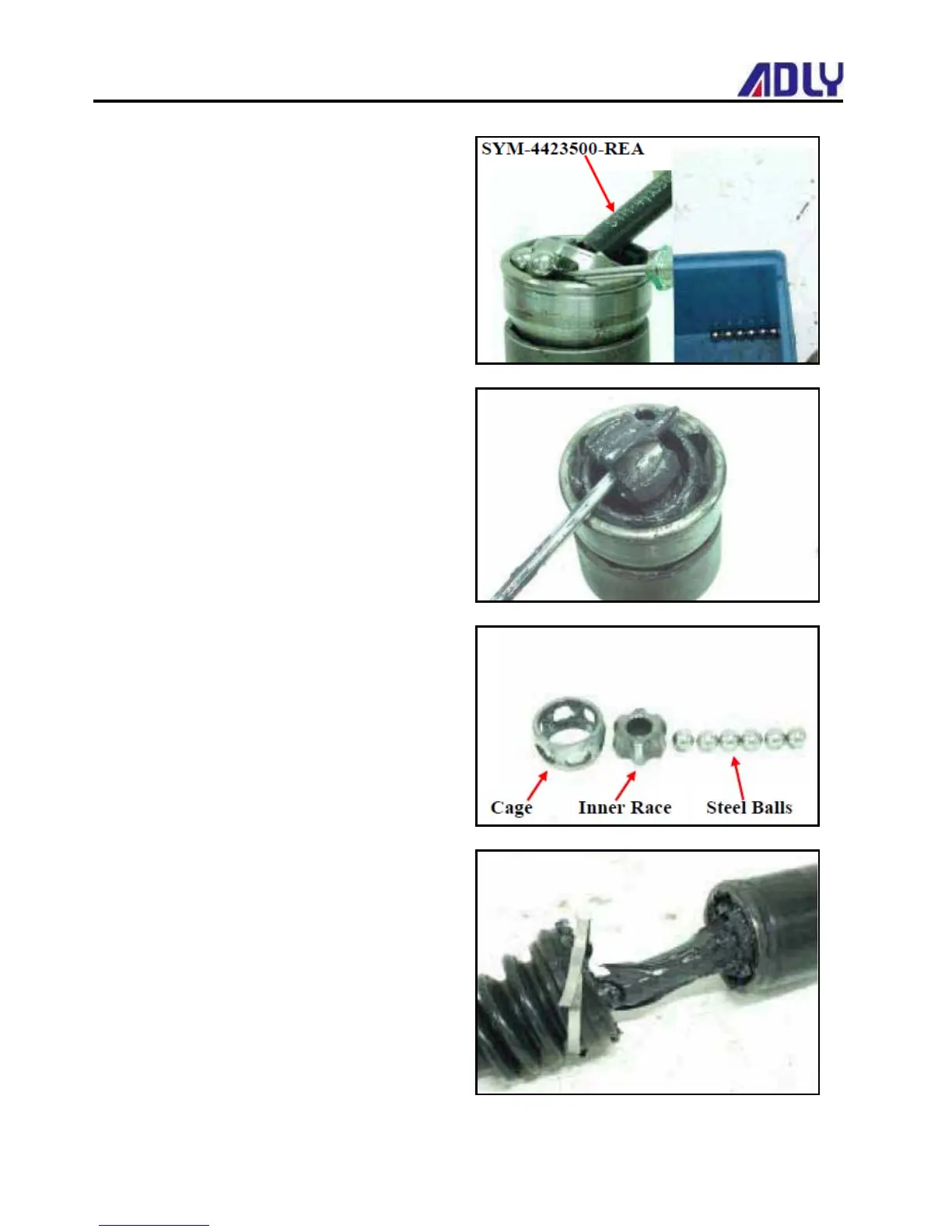

Remove 6 steel balls from UJ assembly outer
race.
Tools name：Wheel drive shaft assembly seat.
Tools number：SYM-4423500-REA
Remove the inner race and cage from the outer
race.
Clean the inner race，outer race，steel balls and
cage.
Double Offset Joint Disassembly
Open DOJ band clip with scrapper.
Remove the wheel drive shaft boot band.
Remove the DOJ rubber boot.
To Next Page
