Ch. 3 LUBRICATION SYSTEM
3-4

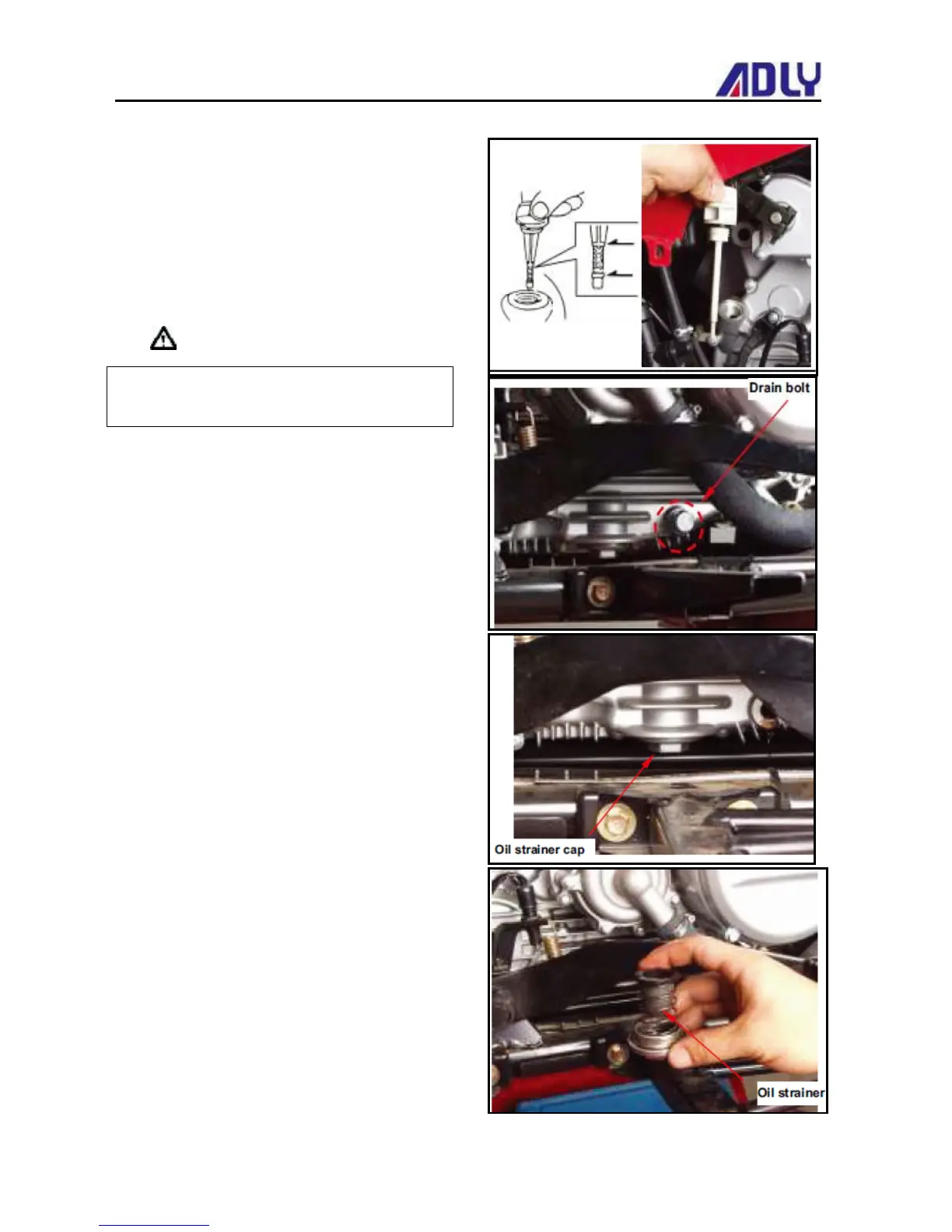

Engine Oil
Turn off engine，and park the ATV in flat surface.
Check oil level with oil dipstick.
Do not screw the dipstick into engine as
checking.
If oil level is nearly low level，fill out recommended
oil to upper level
Oil change
caution
Drain oil as engine warmed up so that
makes sure oil can be drained smoothly
and completely.
Place an oil pan under the ATV，and remove oil
drain bolt.
After drained，make sure washer can be re-used.
Install oil drain bolt.
Torque value：3.5-4.5kgf-m
Engine Oil Strainer clean
Drain engine oil out.
Remove the oil strainer and spring.
Clean the oil strainer.
Check if the、O-ring can be re-used.
Install oil strainer and spring.
Install oil strainer cap.
Torque value1.3-1.7kgf-m
Refill oil to crankcase
(oil viscosity SAE 10W-30)
Engine oil capacity: 2400c.c. when
replacing
Install dipstick, start the engine for running several
minutes.
Turn off engine and check oil level again.
Check if engine oil leaks.
