Ch. 18 ELECTRICAL EQUIPMEMNT
18-10
Starting System

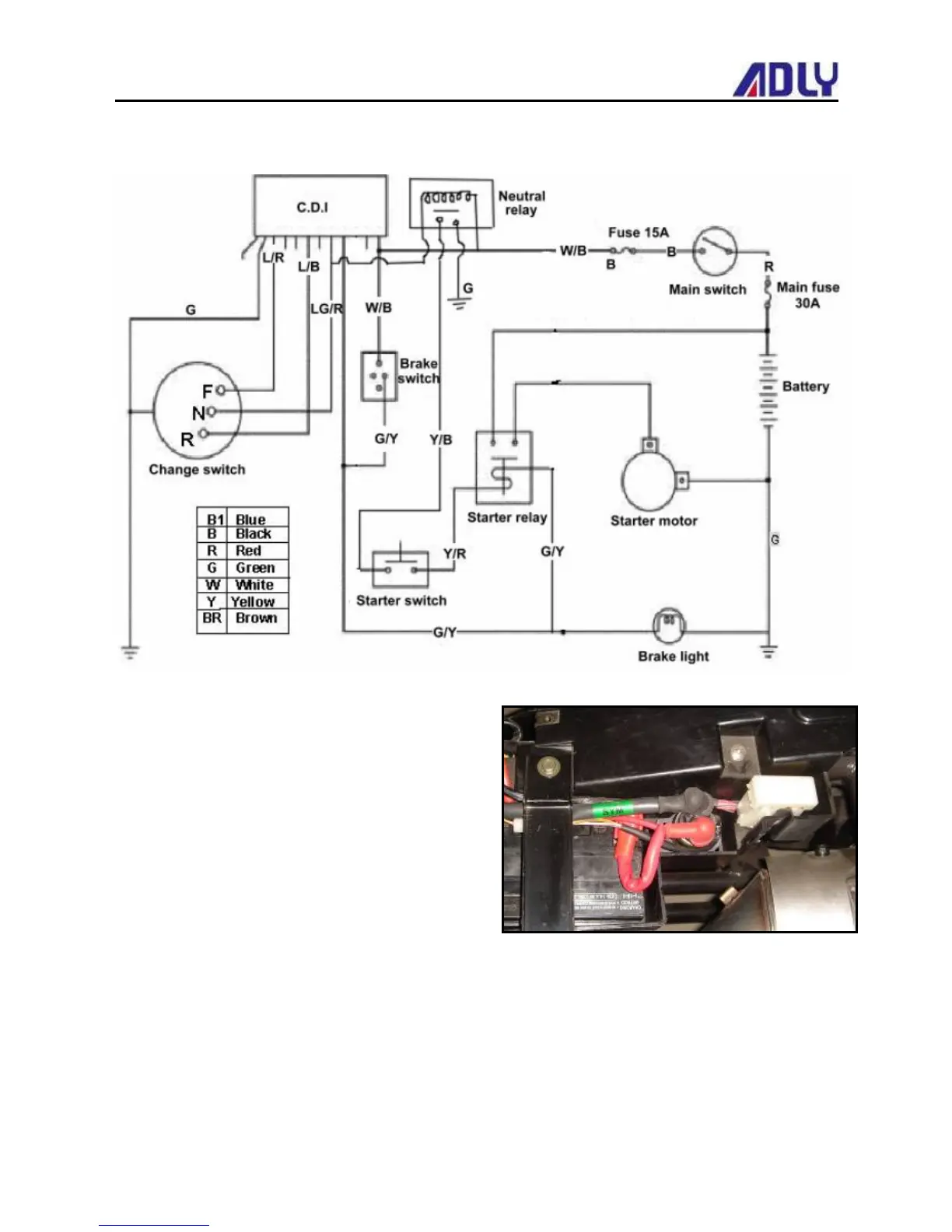

Starting circuit diagram
Inspection on starter relay
The starter relay is located under the seat behind
the battery.
Open the main switch.
Press the brake.
Push down the starter switch.
Disconnect the negative cable terminal of the
battery.
Disconnect the cable positive terminal from the
relay.
Disconnect the positive cable of the starter motor.
Disconnect the coupler of the relay.
Connect an ohmmeter to the large terminal end.
Connect the yellow/red cable to the battery
positive terminal and the yellow/black cable to the
battery negative terminal.
Check the continuity of the large terminal end.
If there is no continuity, replace the relay.
