HER CHEE ATV-600 - Cylinder Head Installation

Ch. 6 CYLINDER HEAD & VALVE
6-14

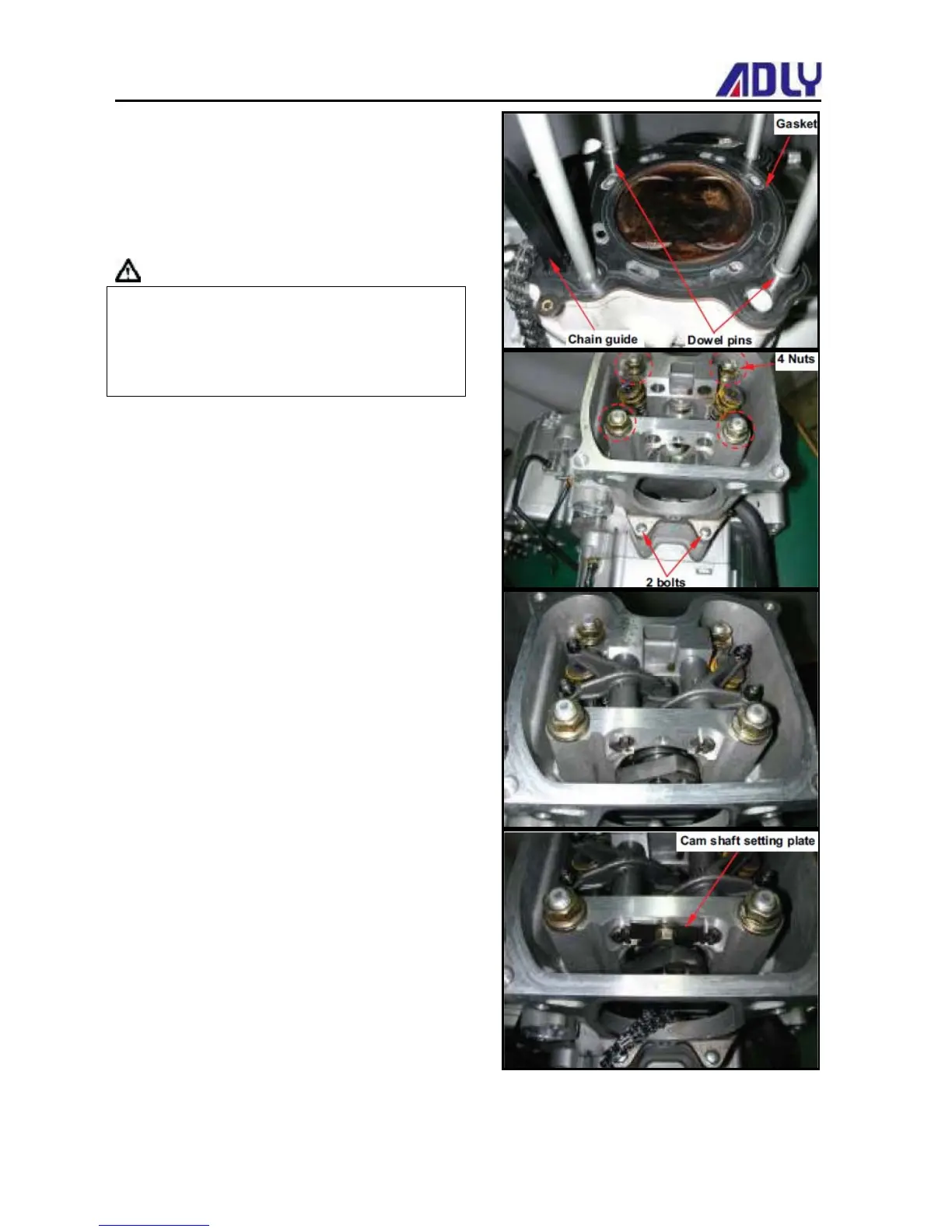

Cylinder Head Installation
Clean up all residues and foreign materials onto
the matching surfaces of both cylinder and
cylinder head.
Install chain guide， dowel pins and a new
cylinder head gasket onto the cylinder.
Caution
 Do not damage the matching surfaces of
cylinder and cylinder head.
 Prevent the residues of gasket or foreign
materials falling into crankcase as
cleaning.
Install 4 washers and tighten 4 nuts on the
cylinder head upper side， and then tighten 2
cylinder head mounting bolts of cylinder head
right side.
Torque value:
Nut 3.6 ~ 4.0kgf-m
Bolt 1.0 ~ 1.4kgf-m
Install camshaft into cylinder head，and install
rocker arm，rocker arm shaft.
Install rocker arm pin mounting plate.
