Ch. 4 FUEL SYSTEM
4-11

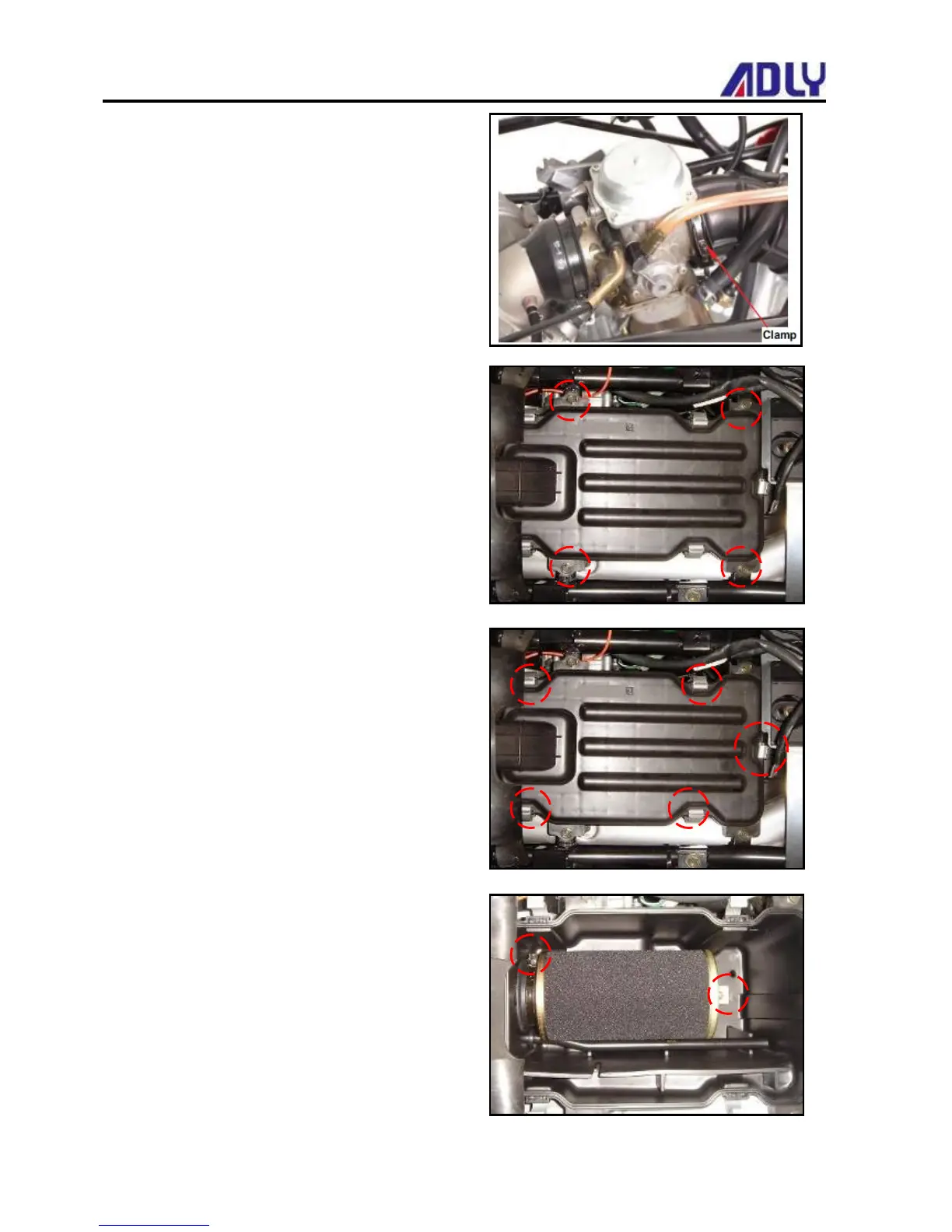

Air Cleaner
Removal
Loosen the clamp strip of air cleaner and
carburetor and then remove the vapor hose.
Loosen the clamp strip of air cleaner and then
remove the air cleaner vapor hose. Remove the
air cleaner (4 bolts).
Installation
Install the tank in the reverse order of removal.
Cleaning air cleaner element
Remove the air leaner cover (5 catch hooks).
Remove element mounting screw. Loosen the
clamp strip of air cleaner element.
