Ch. 4 FUEL SYSTEM
4-10
Fuel Tank
Fuel tank removal
Open the seat. Remove the front cover and front
top center cover.
Remove the side covers and lower side covers.
Remove the front fender.

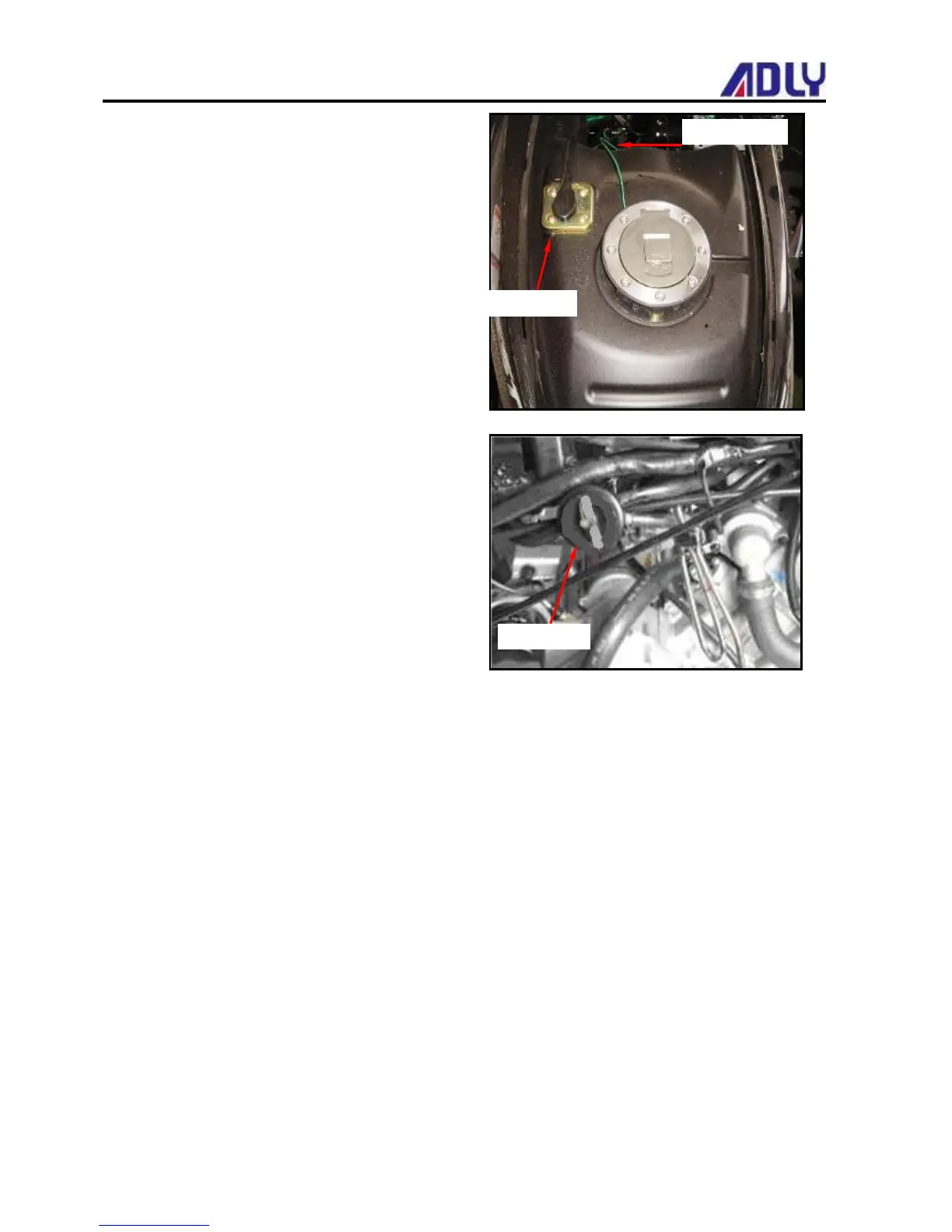

Remove fuel gauge wire and ground wire from
tank. (Covers removal please refer chapter 13)
Remove 2 fuel tubes from fuel valve.
Remove 4 bolts from tank rear side & front side
and then remove fuel tank.
Installation
Install the tank in the reverse order of removal.
Fuel Gauge
Ground wire
Fuel Valve
