HER CHEE ATV-600 - Front Differential

Ch. 2 MAINTENANCE INFORMATION
2-7

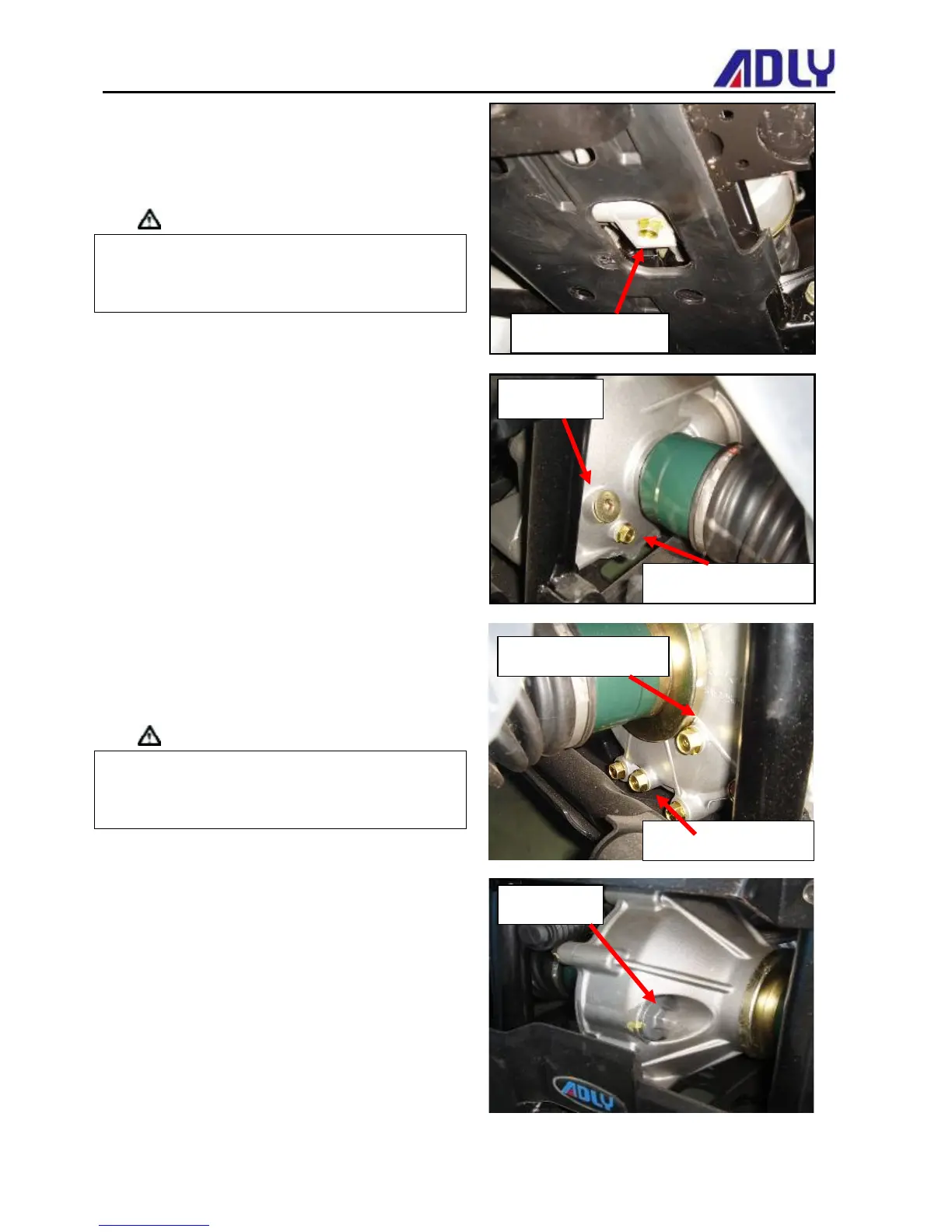

Front Differential
Check the front differential for abnormal noise or
unsmooth rotation.
Caution
* Do not attempt to disassemble the Front
Differential.
* Please exchange the whole assembly if
necessary.
Oil Exchange and Refill
 Exchange the oil based on the maintenance
schedule and specified oil.
 The drain bolt in located on the bottom of front
differential gear box.
 Refill the oil from the top hole and check the
oil level from the check hole.
Rear Axle Gearbox
Check the rear axle gearbox for abnormal noise
or unsmooth rotation.
Caution
 Do not attempt to disassemble the Rear Gear
Box.
 Please exchange the whole assembly if
necessary.
Oil Exchange and Refill
 Exchange the oil based on the maintenance
schedule and specified oil.
 The drain bolt is located on the lower left side
of rear gear box.
 Refill the oil from the top hole on right side and
check the oil level from the check hole.
Gear oil drain bolt
Re-fill hole
Check oil level hole
Gear oil drain bolt
Check oil level hole
Re-fill hole
