Ch. 15 FRONT BRAKE & FRONT WHEEL
15-10

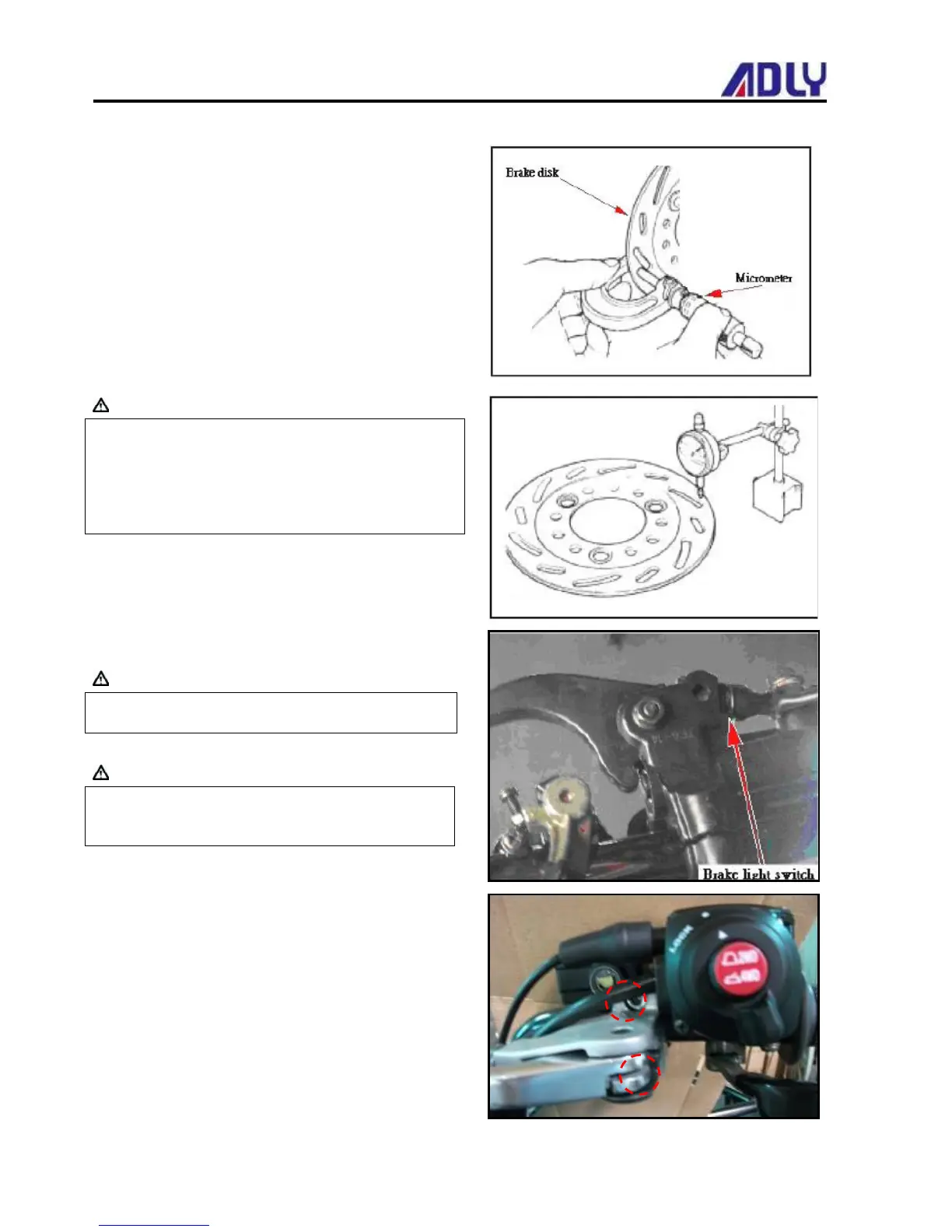

Brake Disk
Inspection
Visually check the brake disk for wear or break.
Measure the thickness of the disk at several places.
Replace the disk if it has exceeded the service
limit.
Allowable limit: 3.5 mm
Remove the brake disk from wheel hub.
Check the disk for deformation and bend.
Allowable limit: 0.30 mm
Caution
The dirty brake lining or disk will reduce the
brake performance.
Brake lining includes the asbestos ingredient,
cannot use the air-gun to be clean, the
operator should dress the mouthpiece and the
glove, use vacuum cleaner clean it.
Front Brake Master Cylinder
Master Cylinder Removal
Caution
Do not let foreign materials enter into the
cylinder.
Caution
The whole set of master cylinder, piston,
spring, diaphragm and cir clip should be
replaced as a set.
Push the lead of brake light switch, and then
remove brake light switch.
Drain out the brake fluid.
Remove the brake lever from the brake master
cylinder.
Remove the brake hose.
Remove the master cylinder socket bolts and the
master cylinder.
To Next Page
