Ch. 8 V-BELT DRIVING SYSTEM
8-3
Left Crankcase Cover

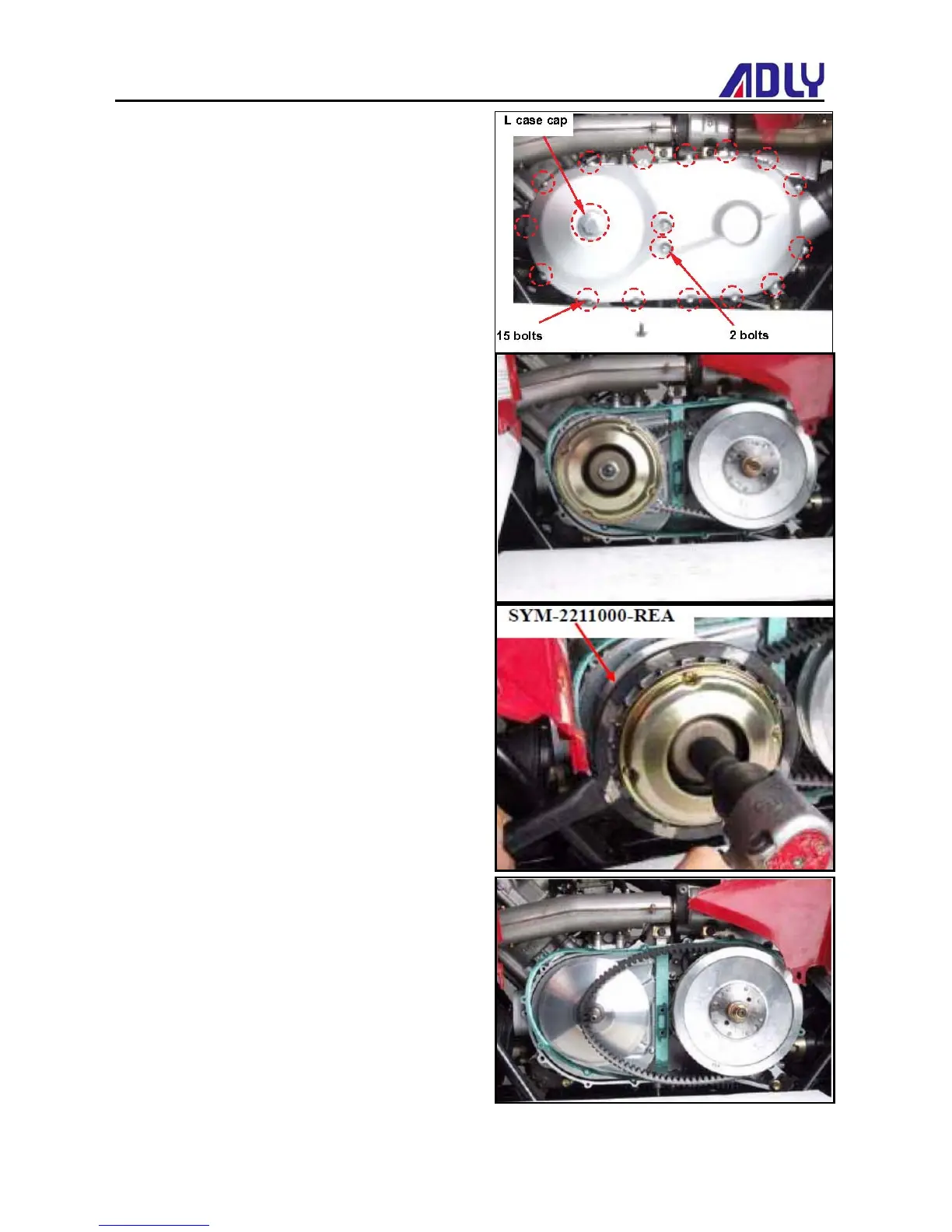

Left crankcase cover removal
Release 2 clamp strips of left crankcase cover
ducts
，and then remove the ducts.
Remove left crankcase cover cap.
Remove left crankcase cover bolts (17bolts).
Remove 2 dowel pin and gasket
Left crankcase cover installation
Install left crankcase cover in the reverse procedure
of removal.
Drive Belt
Loosen 1nut from the drive face with Special tool.
Tool name: Movable Drive Face older
TOOL NO: SYM-2211000-REA
.
Remove the movable drive face.
