Ch. 8 V-BELT DRIVING SYSTEM
8-4

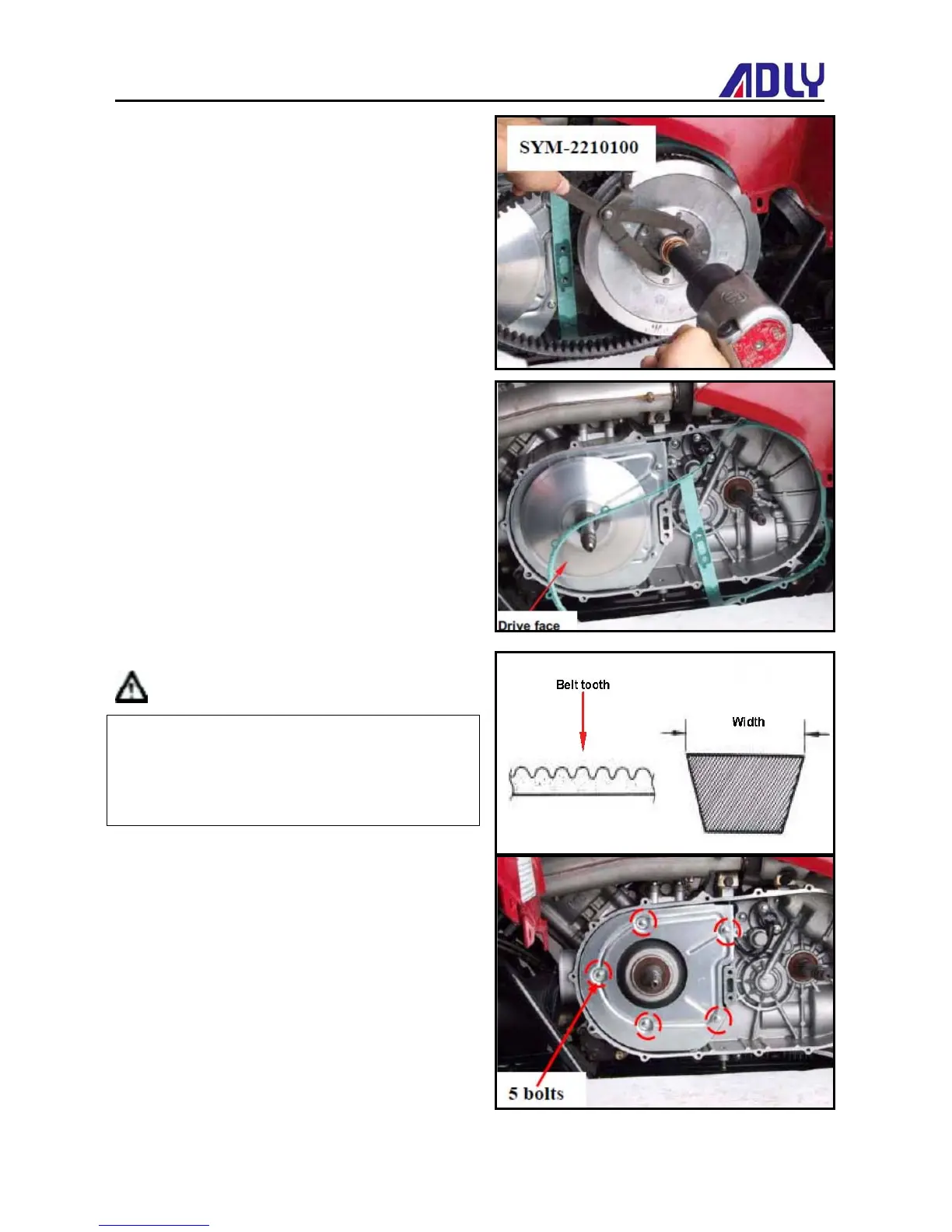

Loosen 1nut from the driven pulley with Special tool.
Tool name: Universal holder
Tool NO: SYM-2210100
Remove the drive pulley and belt.
Inspection
Check the drive belt for crack or wear. Replace it if
necessary.
Measure the width of drive belt as diagram shown.
Service Limit: 29.2 mm
Replace the belt if exceeds the service limit.
Caution
Using the genuine parts for replacement.
The surfaces of drive belt or pulley must be
free of grease.
Clean up all grease or dirt before installation.
Drive Plate
Remove the drive face.
Loosen 5 bolts from the CVT cooling plate then
remove it.
To Next Page
