Ch. 8 V-BELT DRIVING SYSTEM
8-5

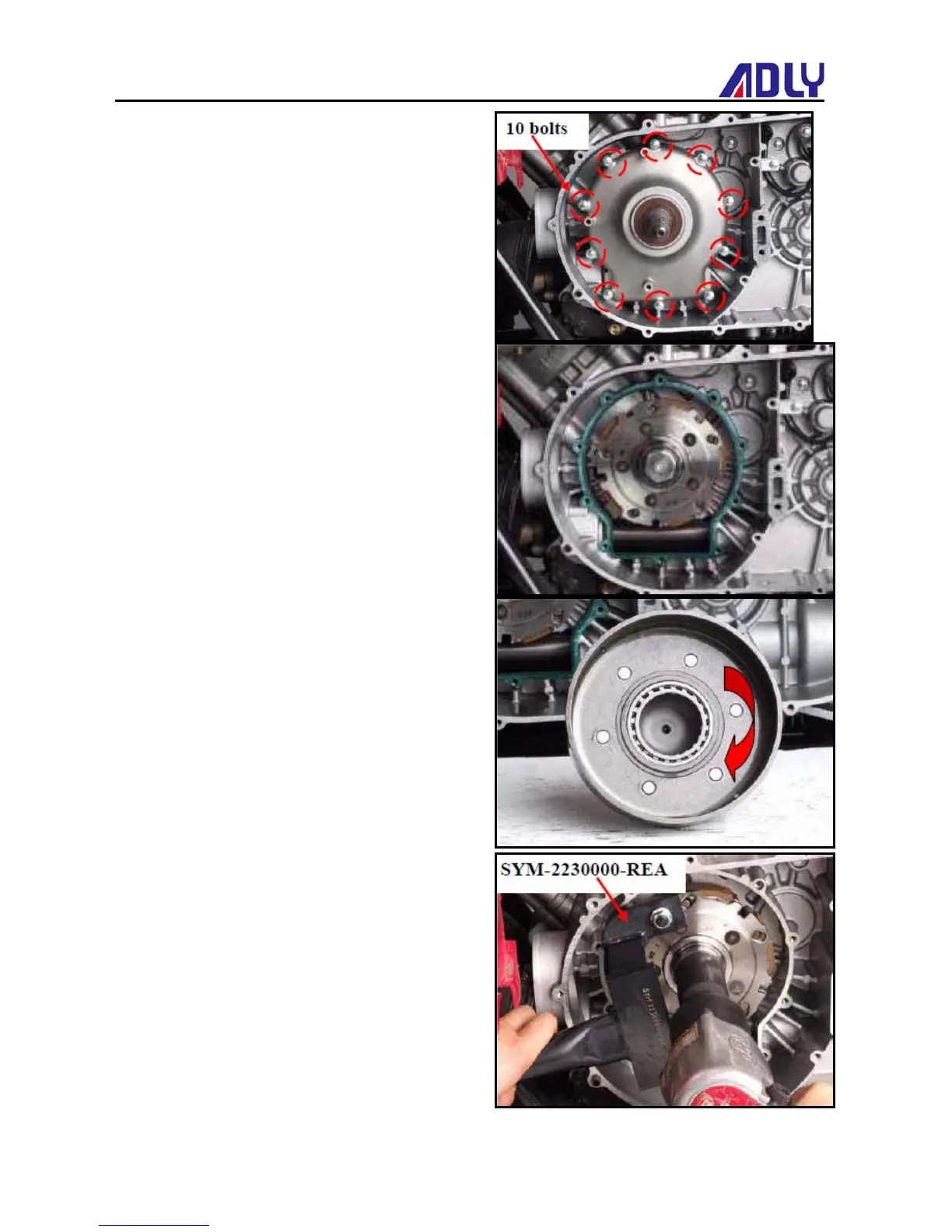

Loosen 10 bolts from the clutch cover.
Remove the clutch cover.
Remove the clutch outer.
One-way Clutch Inspection
Check each roller for wear or damage.
Hold the clutch outer and turning the one way clutch
for right side.
Loosen the drive plate nut with special tool.
Remove the drive plate.
Tool name: drive plate holder
Tool NO: SYM-2230000-REA
