Ch. 2 MAINTENANCE INFORMATION
2-6

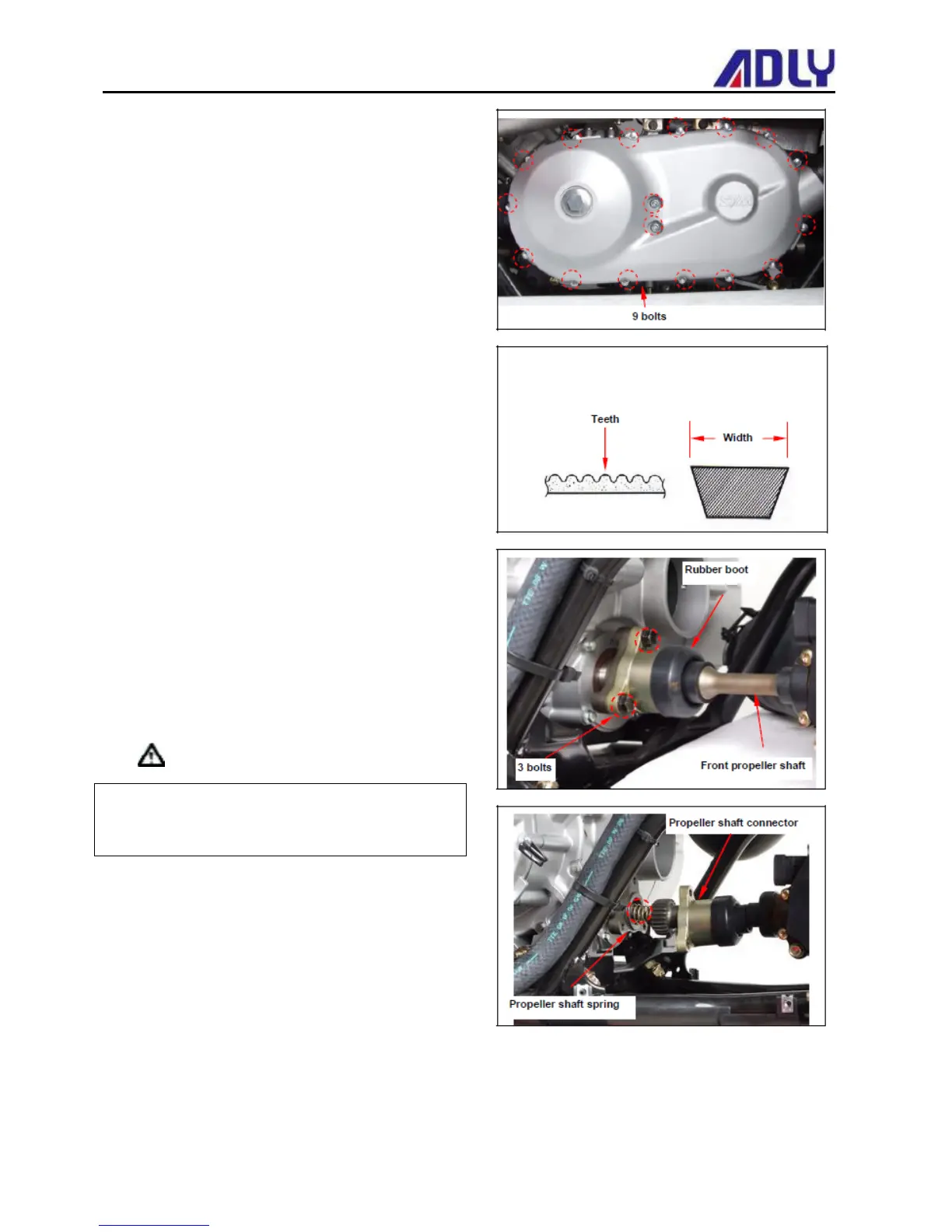

Drive Belt
Loosen the 2 clamp strips of left crankcase
cover, and then remove the left crankcase cover
ventilation pipe.
Remove 17 bolts.
Remove the left crankcase cover.
Check if the belt is cracked or worn out.
Replace the belt if necessary or in accordance
with the periodical maintenance schedule to
replace it.
Width limit: 32.7 mm or above
Propeller Shaft
Remove 3 bolts from the propeller shaft
connector.
Check the propeller shaft for any wear.
Check the rubber boots for any damage.
Caution
Do not lost the propeller shaft spring.
Coat the propeller shaft gear with grease
before assembling the propeller shaft.
