Ch. 11 A.C.GENERATOR/STARTING CLUTCH
11-9

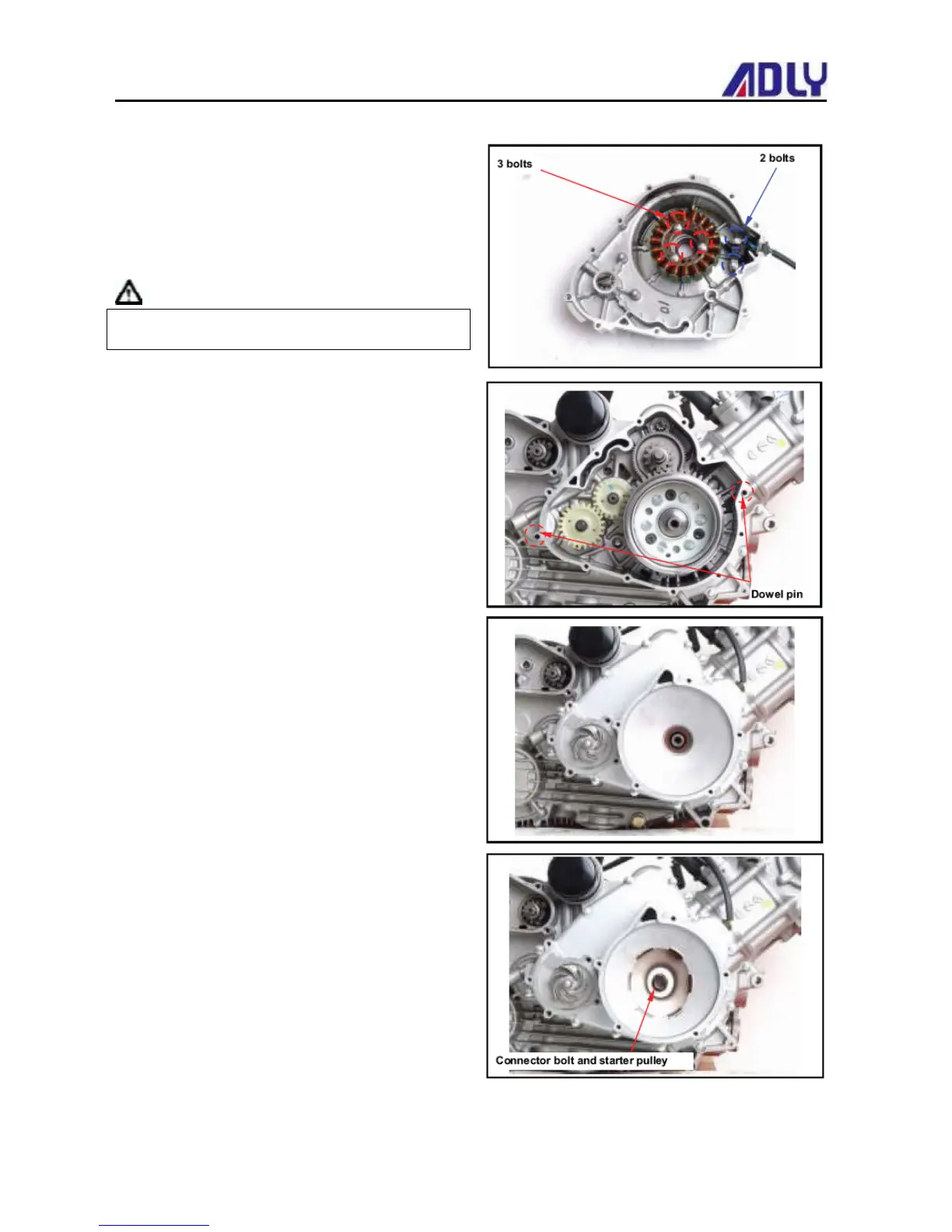

A.C. Generator Installation
Install the A.C. Generator stator set onto right
crankcase cover (3 screws).
Install the pulse generator (2 screws).
Tie the wire harness securely onto the in dent of
crankcase.
Caution
 Make sure that the wire harness is placed
under pulse generator.
Right Crankcase Cover Installation
Install the dowel pin and new gasket.
Remove the water pump cover.
Install the right crankcase cover onto the
crankcase.
Note:
Align the water pump shaft in dent with the oil
pump shaft.
Assemble the connector bolt and starter pulley
on the right crankcase cover.
Assembly 12 bolts on the right case cover.
