Ch. 12 CRANKCASE/CRANKSHAFT
12-8

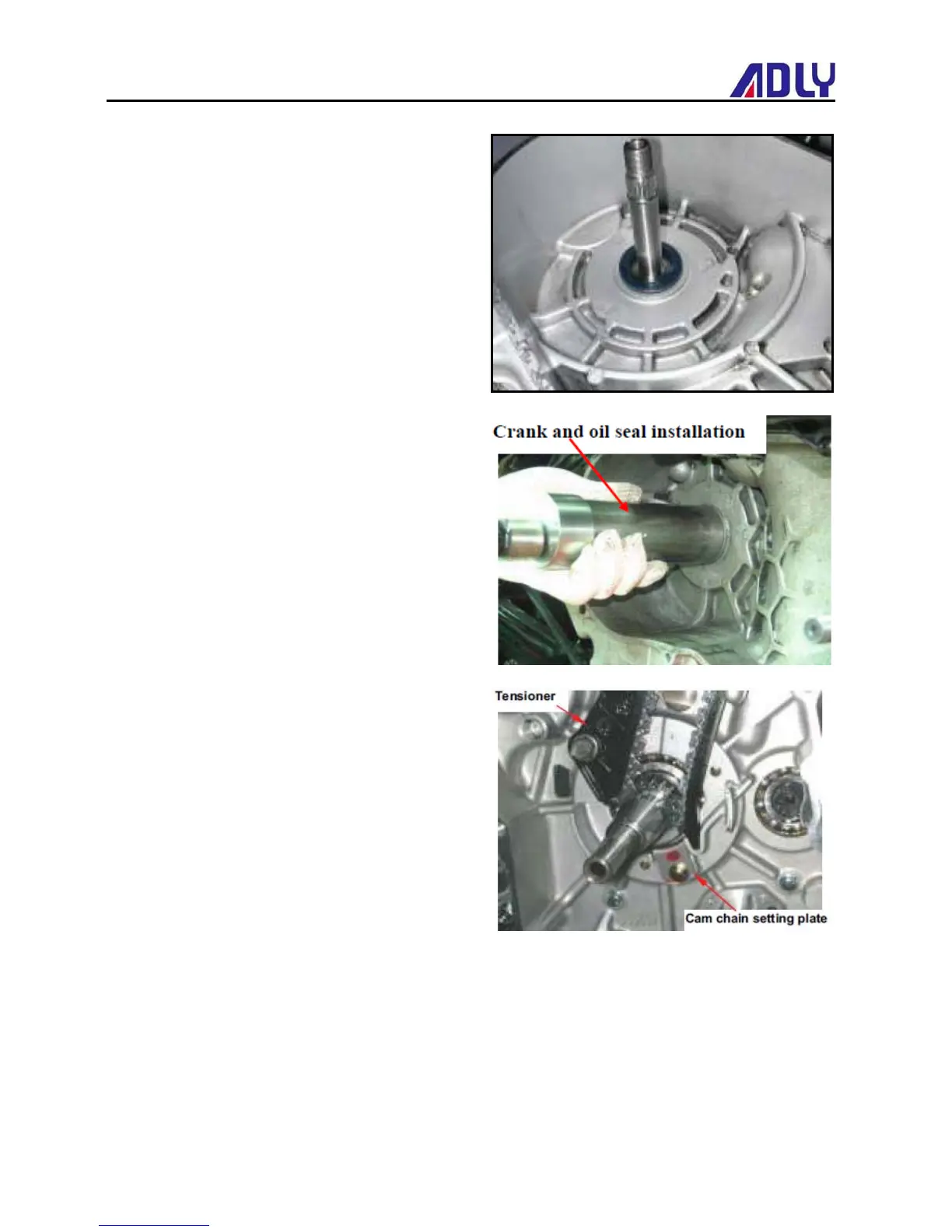

Clean the crankshaft.
Apply a layer of grease on the lip of oil seal， Puts
on the left crank shaft.
Install the oil seal in the left crankcase with care
not to damage the lip of the oil seal.
By oil seal driver (27x42x7)，oil seal will knock into
located.
Special tool:
Tool number: SYM-11332100-HMA RB1
Tool name Crank and oil 5eal in5tallation.
Install the tensioner and tighten the pivot bolt.
Torque value: 0.8 ~1.2kgf-m
Install the cam chain.
Install the cam chain setting plate.
To Next Page
