Ch. 17 REAR BRAKE / WHEEL / SUSPENSION
17-5

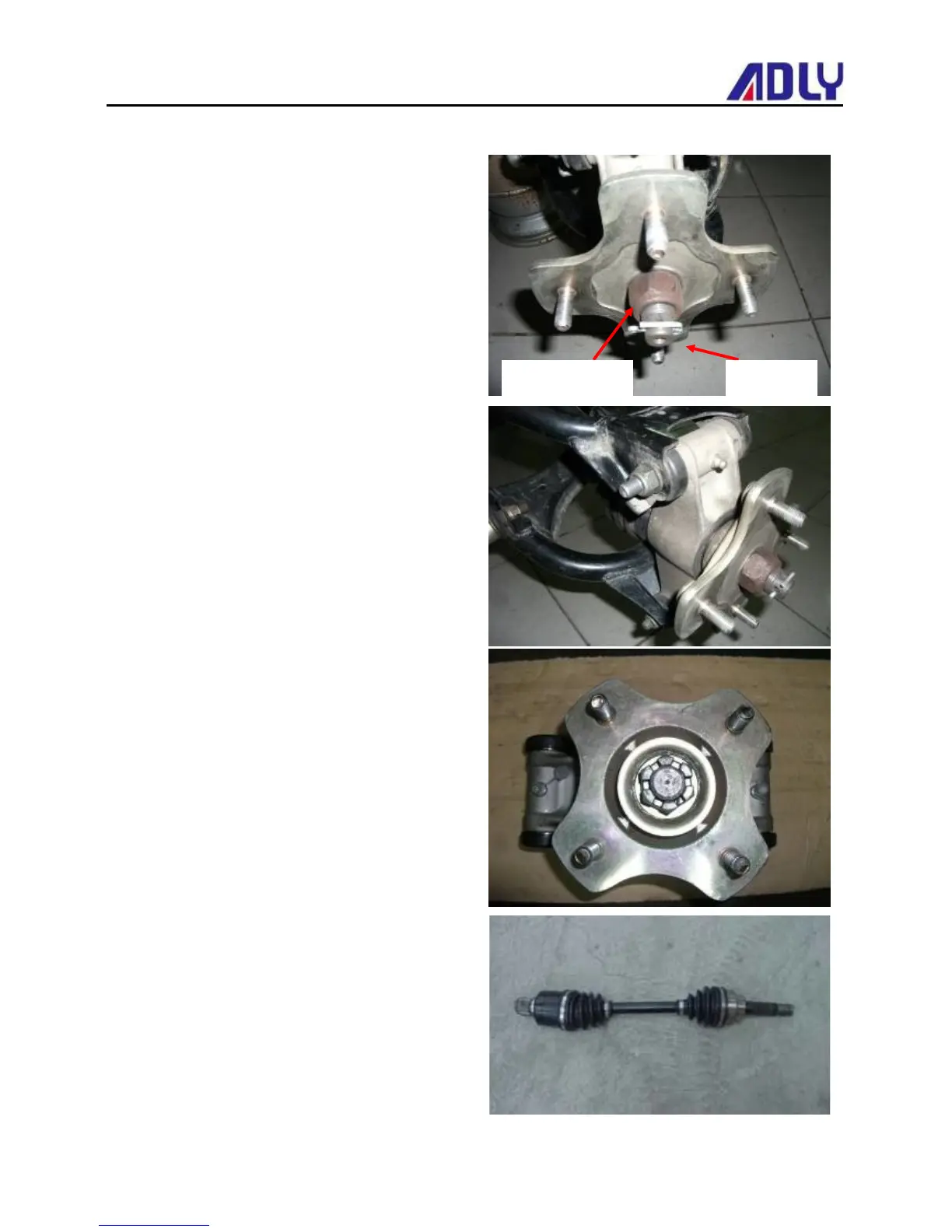

Rear Wheel Axle
Remove cotter pin, rear wheel axle connecter nut
and washer.
Installation
Install wheel shaft connecter washer and tighten
the wheel shaft connecter nut.
Torque: 12.0 kg-m
Install cotter pin.
Remove rear wheel knuckle 2 bolts.(R/L)
Installation
Install rear wheel knuckle and tighten the bolts.
Torque: 5.0 kg-m
Remove rear wheel knuckle.(R/L)
Remove rear wheel axle.(R/L)
Wheel hub nut
Cotter pin
