Ch. 3 LUBRICATION SYSTEM
3-8

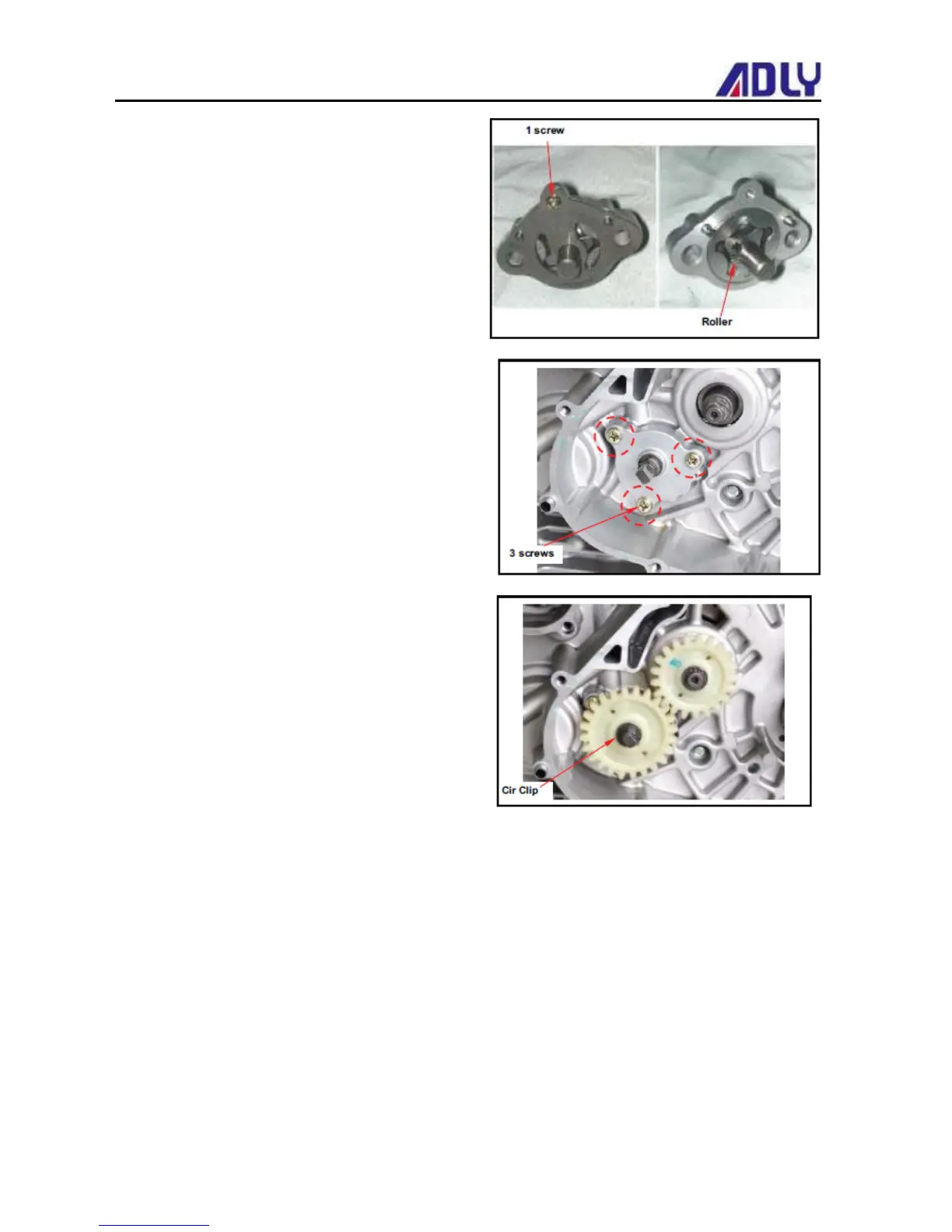

Tighten the oil pump screw.
Oil Pump Installation
Install the oil pump and then tighten screws.
Torque value 0.1-0.3kgf-m
Make sure that oil pump shaft can be rotated
freely.
Install the oil pump sprocket and then install cir
clip onto oil pump shaft.
To Next Page
