Ch. 4 FUEL SYSTEM
4-4
Carburetor Removal / Installation
Removal

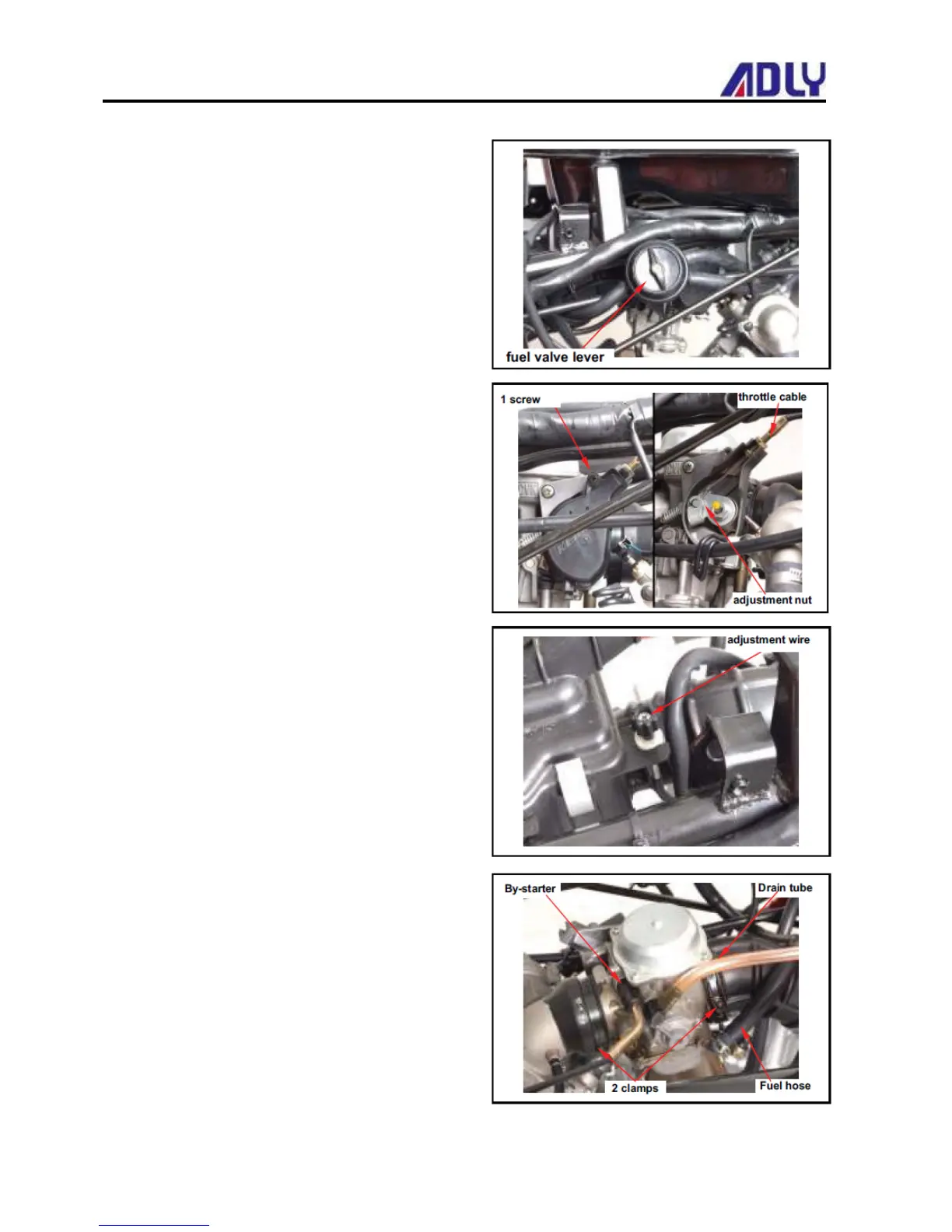

Remove the fuel tank.
Turn the fuel valve lever to OFF position.
Remove 1 screw from throttle lever cap then
remove throttle lever cap.
Loosen throttle cable adjustment nut and remove
throttle cable
Remove the idle adjustment wire.
Disconnect the fuel hose and by-starter and drain
tube.
Release 2 clamps strip of air cleaner and inner
pipe.
Remove the carburetor.
Installation
Install in reverse order of removal procedures.
