Ch. 6 CYLINDER HEAD & VALVE
6-5

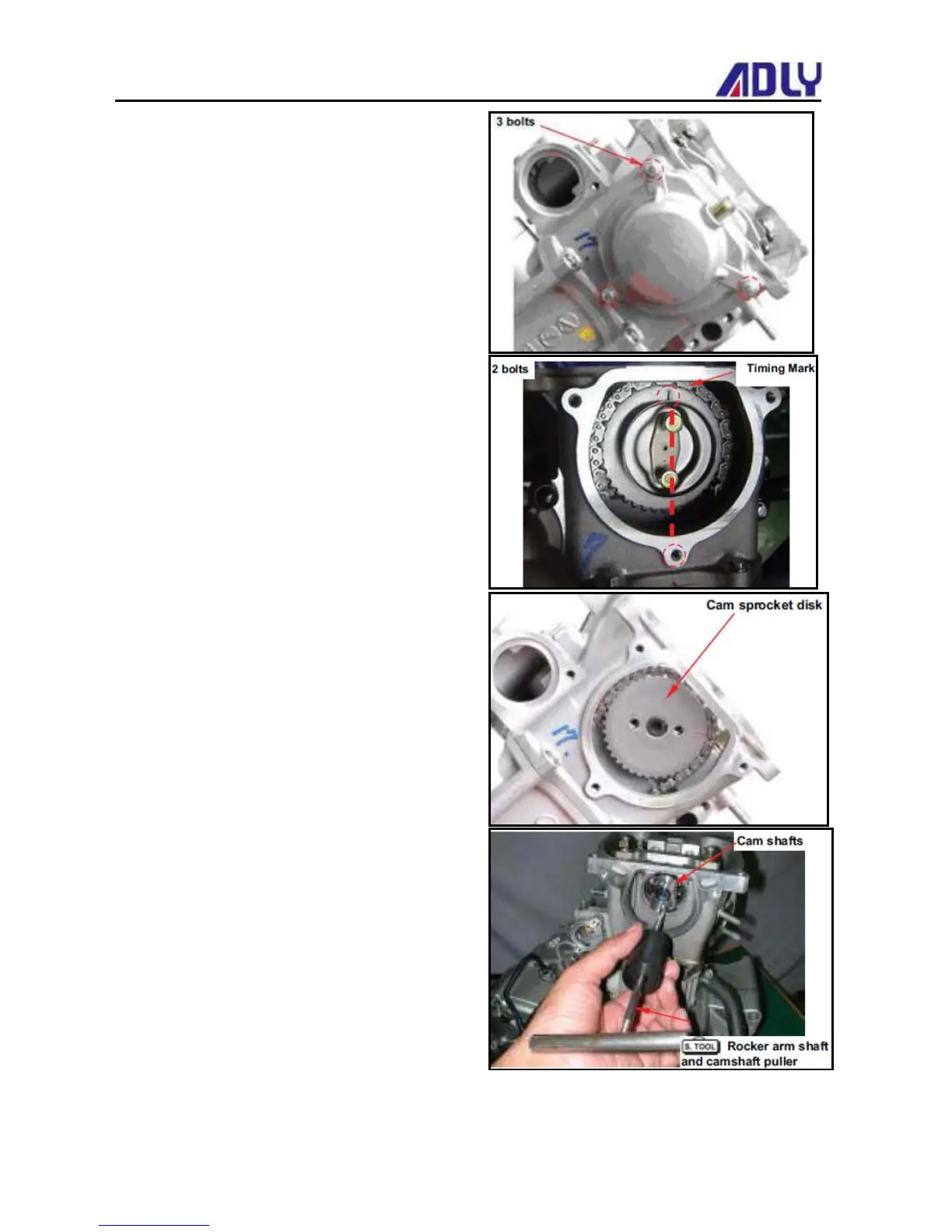

Remove the side cover mounting blots of
cylinder head，and then remove the side cover.
Remove left crankcase cover and turn the drive
face.
Align the timing mark on the cam sprocket with
that of cylinder head to make the piston at TDC
position.
Loosen 2 bolts from the cam sprocket.
Remove the cam sprocket disk and washer.
Remove the cam sprocket.
Special Service Tool:
Tool no: SYM-1445100
TOOL number: rocker arm and camshaft puller.
