HER CHEE ATV-600 - PISTON & CYLINDER

Ch. 7 PISTON & CYLINDER
7-1
Mechanism Diagram..............................7-1 Piston Ring Installation.........................7-6
Precautions in Operation......................7-2 Piston Installation..................................7-7
Trouble Diagnosis.................................7-2 Cylinder Installation..............................7-7
Cylinder and Piston Removal…….…...7-3

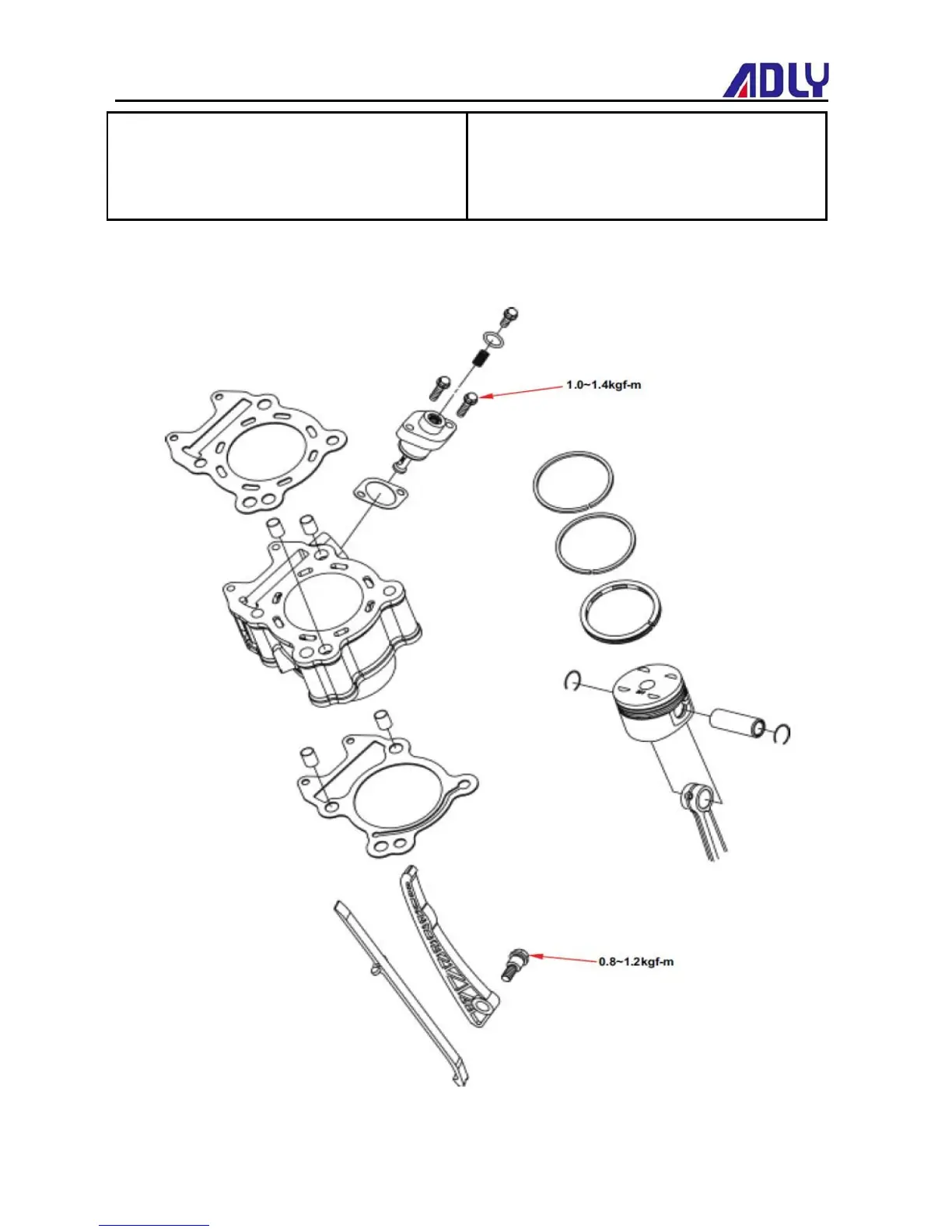

Mechanism Diagram
