Ch. 7 PISTON & CYLINDER
7-5

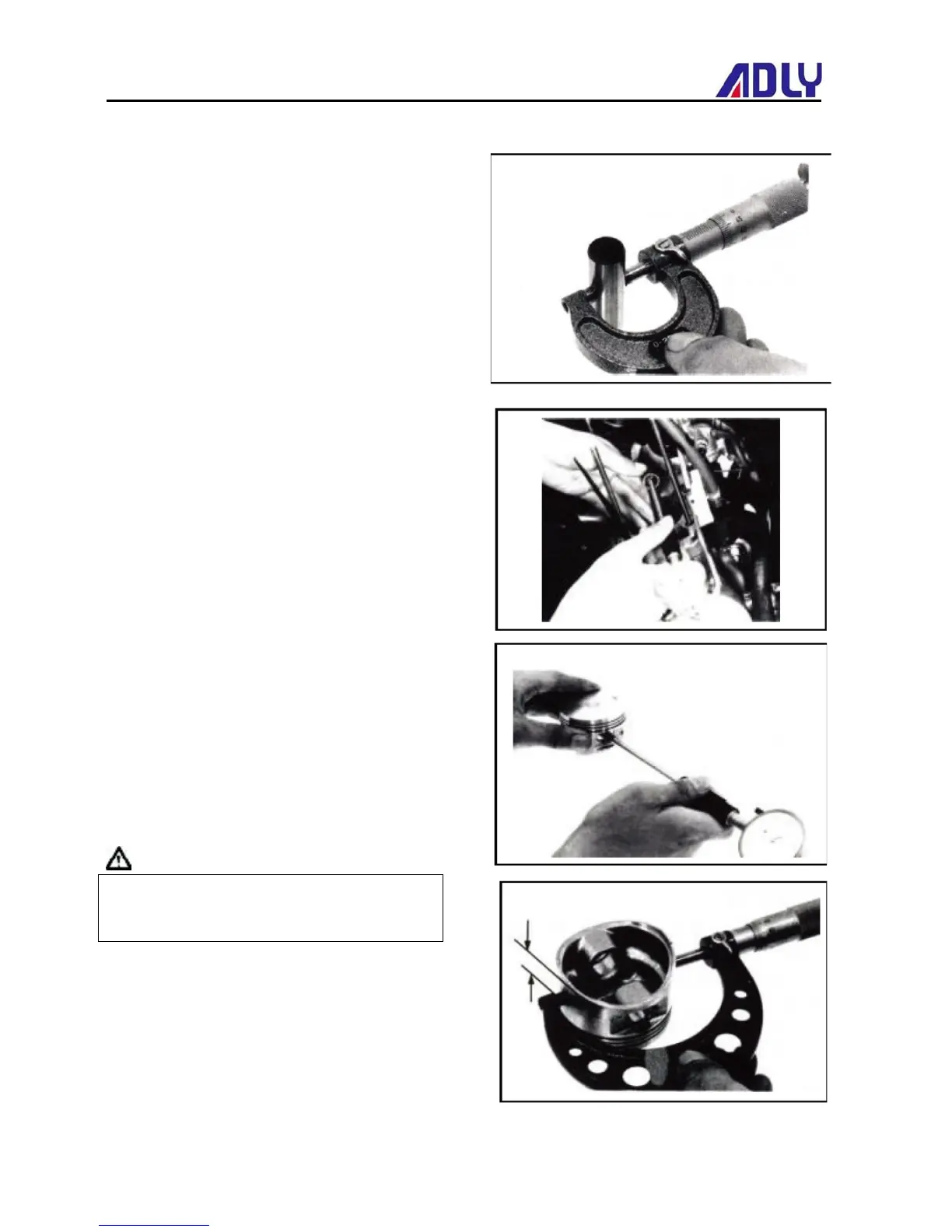

Measure the outer diameter of piston pin.
Service Limit: 16 .96 mm
Measure the inner diameter of connecting rod
small end.
Service Limit: 17.064 mm
Measure the inner diameter of piston pin hole.
Service Limit:17 02 mm
Calculate clearance between piston pin and its
hole.
Service Limit: 0 02 mm
Measure the piston outer diameter.
Caution
The measurement position is 10 mm
distance from piston bottom side and 900 to
piston pin.
Service limit：75 380 mm
Compare measured value with service limit to
calculate the clearance between piston and
cylinder.
