Hercules 10 User Manual

10 Zone LED Alarm Panel - Engineering Manual
32
EN Compliant
When this flag is set to ON, the alarm system has Battery Monitoring function.
EOLR Zone

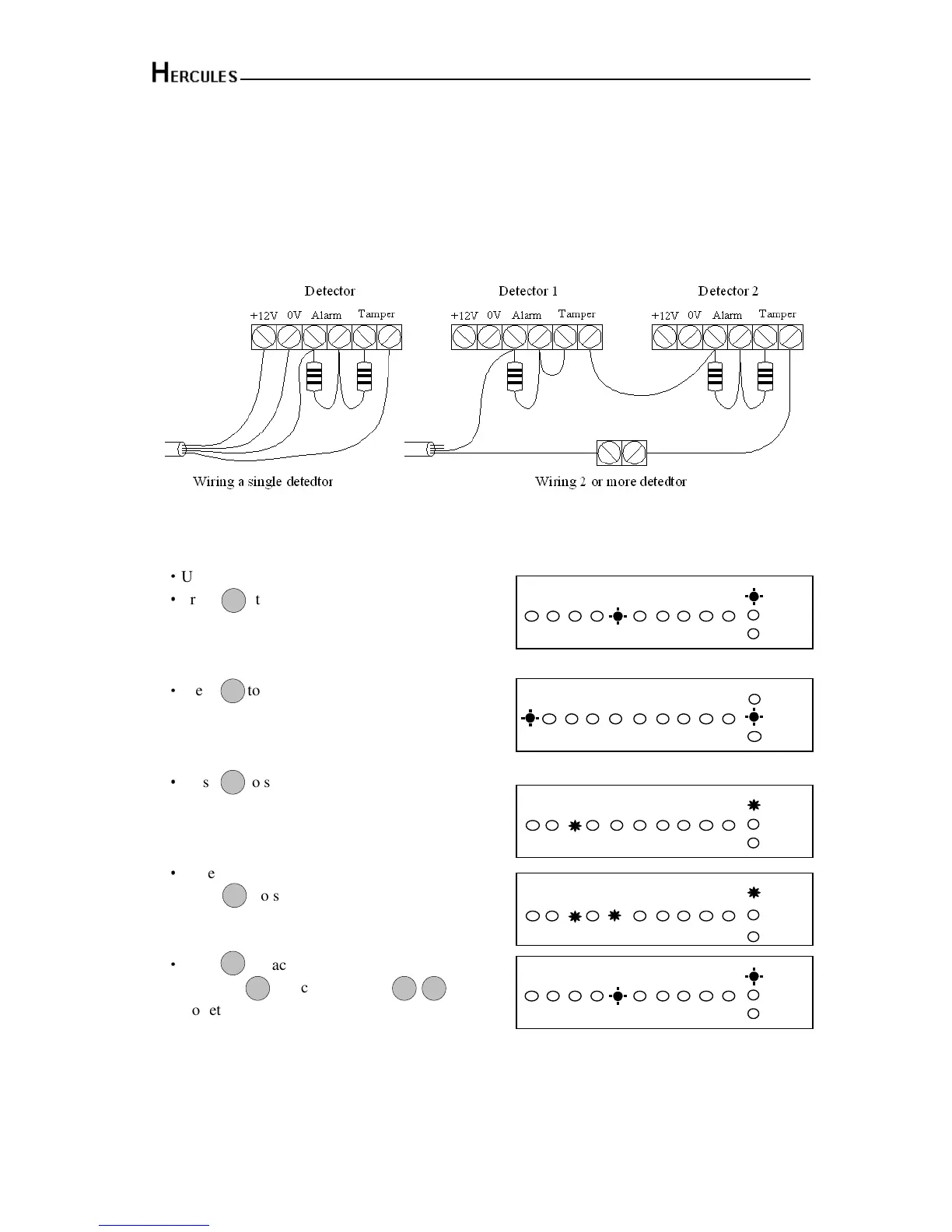

When this flag is set to ON, the alarm system goes to EOLR mode. Each detector must have
a 2k2 resistor connected across its alarm contacts. In addition, a 2k2 resistor must be
connected across the end of the Zone wiring, as shown in the following diagram. Note the
PIR detectors usually have a “spare” terminal for this purpose.
To operate Flag 2 as follow.
· Under Engineer mode.
· Press to select Setup system.
· Press to select system flag item.
· Press to select system flag 2 option.
Default settings are on.
· For example, add EN Compliant flag.
Press to select.
· Press to accept the change
Or press to cancel. Press
To return to Engineer mode.
