HERO DUET - Page 13

(4) Turn signal switch
(10) Turn signal indicator
(3) Integrated brake lever
(6) Rear view mirror
(5) Parking lever
(2) Horn switch
(9) Side stand indicator
(7) Dimmer/Passing switch
(8) Hi-beam indicator
(1) Choke knob
*Accessories and features shown may not be part of standard fitment.

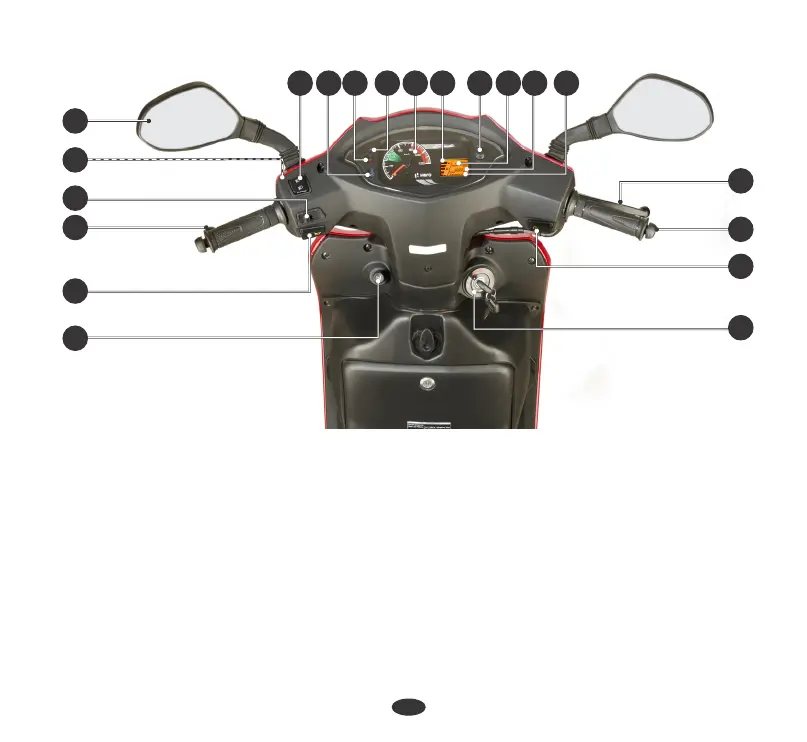

TOP VIEW
VEHICLE VIEWS
17
19
5
4
2
3
1
10
9
11
7
15
18
8
12
10
(13) Reset button
(19) Starter switch
(12) Fuel gauge
(16) Odometer
(11) Speedometer
(18) Throttle grip
(14) Service reminder
(15) Tripmeter
(17) Front brake lever
(20) Ignition switch with steering lock
6
13 14
16
20
